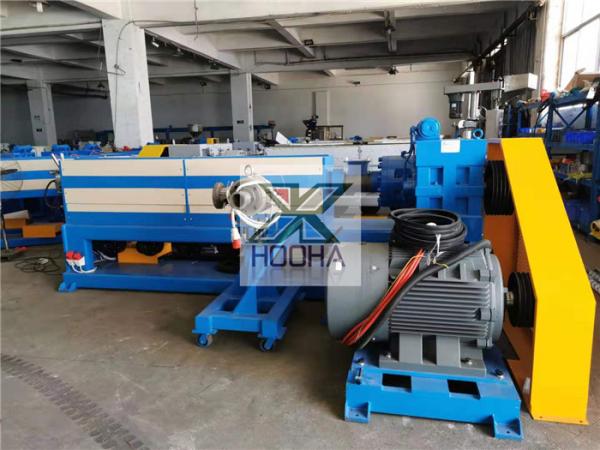

    Soft Optical Fiber Wire Extrusion Machine 50 Simplex And Duplex

    Ask Lasest Price
    Brand Name : HOOHA
    Model Number : HH-50MM
    Certification : CE/ISO
    Price : US$53470-56890/1set
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 10set/1 month
    Delivery Time : 25-35Working Days
    • Product Details
    • Company Profile

    Soft Optical Fiber Wire Extrusion Machine 50 Simplex And Duplex

    Wire And Cable Machinery 50 Simplex And Duplex Soft Fiber Cable Production Line



    Features


    1; Automatic diameter feedback, wire diameter curve records traceable inquiries;

    2; Vacuum pumping system is adjustable, and can be linked to the linear speed;

    3; Active pay off, the tension is precisely constant with little additional loss;

    4; Adopts OMRON temperature control meter, high accurate temperature control;

    5; Doule bobbin automatic take-up, moving type take-up, stable and reliable operation;

    6; Adopts the world famous automatic industrial computer control technology;

    7; The device can be linked MES, ERP system, On-line tracking production management;

    8; All facilities take high quality components, stability and reliability is high


    Application:


    1;Mainly used to produce 1.2mm--7.0mm simplex or duplex indoor fiber optic cable;

    2;1--24F micro-breakout cable(MPO/MTP Patchcord used);

    3;4--8F mini-breakout indoor fiber optic cable;



    Technical parameters of soft cable production line :


    Extruder type50×26 Extruder
    The extrusion materialLSZH, PVC
    Tight fiber diameterφ0.6mm φ0.9mm
    Design speed200m/min
    Actual speed≤120m/min
    (according to cable diameter)
    Specification of optical fiber pay-off reels25km and 50km standard optical fiber reels
    Tight fiber reel sizeφ300-400mm
    Tight fiber pay off tension1~3N
    Heads no of aramid yarn10heads
    Pay- off tension of aramid yarn3N~10N
    Take up reel sizeφ400~630mm
    (can adjust according to customer's demand)
    Take-up tension5-20N(can adjustable)
    Center height of machine1000mm from the background

    Machine main electric brand


    Motor: Siemens
    Transducer: American Emerson transducer
    Temperature controller: Omron Brand PID Smart type
    Man-Machine interface: 10.2 inch color
    PLC and Control Module: Siemens
    Screw and Barrel: Made In China
    Bearing: Japan NSK or other same quality brand
    Low voltage electrical parts: Adopts SIEMENS, OMRON, SCHNEIDER brands,etc.


    After service


    1). Delivery dates: 45 days
    2). Payment: TT or L/C
    3). Packing: Wood packing and PE plastic packing ensure the goods safety on the transportation.
    4). Install and training service: 2 professional engineers who has over 5 years overseas install and cable manufacture training experience.
    5) after service phone number online


    Automatic Cable Wire Machine Extrusion Equipment Japan NSK Bearing Siemens Inverter


    FAQ


    QuestionAnswer
    MOQ1 set
    Lead Time30~40 working days since starting producing.
    Warranty Time1-year quality guarantee for the machine
    Payment Terms30% T/T in advance for production material, 70% in the period of shipment.
    Installation
    (3 choices )
    a. HOOHA's Chinese installation team.
    b. HOOHA's overseas installation co-partners in your country.
    c. DIY Guide: HOOHA supports online guidance.
    How to StartContact us and leave your contact email and phone number.

    1. did you want but feel difficult to invest a cable plants ?

    2. did you feel that it is too long to payback what you invest ?

    3. did you feel that the project take too long time and not finish since lacking and difficult to get locally ?

    4. did you feel that there is much waste during the project working since the not good plant from the beginning ?


    if our experiences and technical can help you , please free to contact with us
