    ISO 90 mm Power Cable Extruder Machine With Capacity 250kg/hr 380V 50Hz

    Ask Lasest Price
    Brand Name : HOOHA
    Model Number : HH-90
    Certification : CE ISO
    Price : Neogitable
    Payment Terms : L/C, D/P, T/T, Western Union
    Supply Ability : 10set/1 month
    Delivery Time : 40 Working Days
    • Product Details
    • Company Profile

    ISO 90 mm Power Cable Extruder Machine With Capacity 250kg/hr 380V 50Hz


    ISO 90 mm Single Screw Power Cable Extruder Machine with Siemens Motor


    Application:
    It is for insulating, coating, stripping single or two layer wire and cable with extruding PVC, XLPE and LDPE compound material.
    It is also suit for making power cable, building wire, communication cable, and so on.

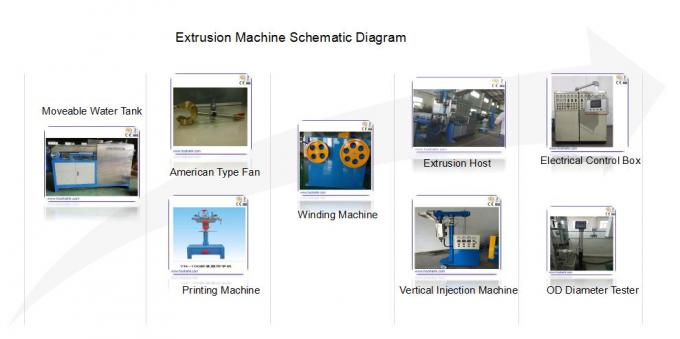

    Consisting Components:


    Model:90Consisting Components
    Pay off bobbin size:630-1000 mmPay off stand2
    Screw size:90mmDancer1
    L/D:26:1Main extruder1
    Material:PVC, XLPEloader & dryer1
    Main driven motor:50 kwCrosshead1
    Motor control:50 kw inverterMoving trough1
    Screw speed:120 rpmMain cooling trough1
    Output capacity:380 kg/hrWater wiper1
    Temperature control:9 zonesDiameter controller1
    Capstan motor:5.5 kwprinter1
    Max. accumulating length:200 mAccumulator1
    Finished cable diameter:3.0---25.0 mmCapstan1
    Max. line speed:450 m/minSpark tester1
    Take up bobbin size:630-1000 mmMeter counter1
    Take up2
    Control box1

    Note: The above parts can be selected according to the needs of the customer

    ISO 90 Mm Power Cable Extruder Machine With Capacity 250kg/hr 380V 50Hz

    ISO 90 Mm Power Cable Extruder Machine With Capacity 250kg/hr 380V 50Hz


    Main Parts Brand:


    1. Motor: Germany-Siemens
    2. Inverter: Germany-Siemens or YASKAWA Japan
    3. Electric equipment: Siemens and Omron
    4. Bearing: NSK from Japan
    5. Belt: Mitsubishi

    Technical Parameter:


    Technical Parameter


    Type90mm
    Power380V 50Hz three phrase or customer's requirement
    Main Motor Power

    30KW


    Finish Wire Diameter


    3.0-25.0 mm


    Temperature Control


    9 Zones
    Max Line Speed450m/min
    Rotation Speed120 rpm/min

    Extrusion Capacity


    270kg/hr

    Bobbin Dia


    630-1000mm

    Main Parts Function:


    1. Inverter: The speed can be changed from zero to max

    2. Pay-off tension: Control automatically by electricity
    3. Take-up machine uses Polish rod, transverse and distance can be adjusted by plain shaft.
    4. Machine center height: 1 meter
    5. Diameter of screw: 70mm, L/D of screw: 26/1. Material: 38 CrMoAiA


    6. The surface of screw is carburized and quenched, electroplated with hard cr.
    7. Inside diameter of screw tube: 70mm. Material: 38 CrMoAiA,
    8. The surface is carburized and quenched.
    9. The material of insulation are PVC, XLPE, LSHF, PE, PP, TPEE, NYLON
    10. Production direction: Pay-off on the left. Take-up on the right. Customer's requirement


    11. Color of production line is light blue(automobile finish ), safe cover is yellow OR customer's requirement
    12. PROMOT SWITCH counter, set length freely.
    13. Automatically stop: When the counter has reached to your desired length, the Take up will stop automatically, if wire breaks abnormal and self-actuating brake


    Choose Us:

    HOOHA GROUP provide the series solution for the layout design of cable plant, machine matching, shipping and installation. It means you only spend less money on machine. You can enjoy such services and get more money.


    1.We are the cable equipment manufacturer.

    2.Professional engineer,long-term to research and development for to cable equipment .

    3.High frequency capacity manufacturer machine is provide .Guarantee the machine all weather running .

    4.Our machine use the international qualified brand,like siemens ,omron,nsk,lg etc.

    5.Technical support and spare parts service.

    6.Well-experienced in overseas to support customer with technical,training,operating.

    7.Responsible and Good communication and customer service skills,and save time and human cost for customers.

    8.Complete Foreign Trade Team.

    9.Working efficiently,quickly response to customer needs.


    ISO 90 Mm Power Cable Extruder Machine With Capacity 250kg/hr 380V 50HzISO 90 Mm Power Cable Extruder Machine With Capacity 250kg/hr 380V 50Hz
