100Pa GA / T537 - 2005 Electrical Cable Testing Equipment

    Buy cheap 100Pa GA / T537 - 2005 Electrical Cable Testing Equipment from wholesalers

    Buy cheap 100Pa GA / T537 - 2005 Electrical Cable Testing Equipment from wholesalers
    • Buy cheap 100Pa GA / T537 - 2005 Electrical Cable Testing Equipment from wholesalers

    100Pa GA / T537 - 2005 Electrical Cable Testing Equipment

    Ask Lasest Price
    Brand Name : HOOHA
    Model Number : ZY6261-PC
    Certification : CE/ISO
    Price : 3000-80000USD/PC
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 10set/1 month
    Delivery Time : 25-35Working Days
    • Product Details
    • Company Profile

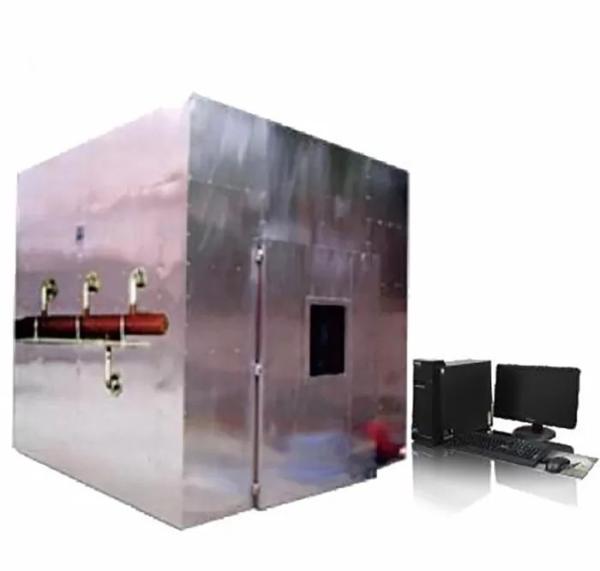

    100Pa GA / T537 - 2005 Electrical Cable Testing Equipment

    GA / T537 - 2005 Electrical Test Equipment , Water Fire Electrical Wire Tester


    Suitable standard:

    GA/ t537-2005 (Main wire system) fire retardant, fireproof, fire-resistant performance test method) and GB/T9978.1-2018 (part I: general requirements) experimental standards.


    Scope of application: it is applicable to the test of flame retardant, fireproof and fire resistance of main wire system (Main wire bar).

    Specifications:

    PowerAC 380V+-10% 50HZ
    Power5KW
    Furnace pressure measuring range.0-100PaAccuracy of measurement+-3Pa
    The air capacity0-50m³/minAccuracy of measurement+-0.5m³/min
    The combustion air supplyPropane, liquid gas.
    Tank capacity50KG*4
    Test temperatureFellow GB/T9978.1-2008 Heating curves
    Temperature in the furnace+-15 degree
    Sample internal temperature.+-10 degree
    Sample back temperature.+-4 degree
    Temperature sensor
    Furnace Inside6 armored nickel-chromium nickel-silicon K value thermocouple, accuracy grade 2.
    Backdraft6 armored nickel-chromium nickel-silicon K value thermocouple, accuracy grade 2.
    measurement range0-360min,Timing accuracy +-2S
    Maximum combustion length of sample level.2.4m
    Sample vertical maximum combustion length.1.6m, device dimensions: length, wide,Height 3*2*2.5m equipment weight: 4000KG.

    Timely delivery
    Based on our rigorous delivery system,our shipments are very timely and the process is very systematic.

    Factory & Workshop &Warehouse
    Dongguan Jinju Machine Co., Ltd is HOOHA Company Limited factory, which was established in 1998,with full experience on wire and cable machinery manufacturers in Dongguan,China.
    Due to international market developing,we expanded the space from 2000 sq meters to 8000 sq meters


    Company nameHOOHA Co.,Ltd
    Established2003
    Main productsUpcast and continuous casting machine,wire extrusion machine,wire stranding machine,wire drawing machine,test machine and so on.
    Value added serviceInclude factory planning, cable raw material supply,cable equipment layout,cable technology export,technical support and operation training and cable testing laboratory construction.
    Factory locationHumen Town,Dongguan City,Guangdong province.
    Manufacturing Center8000 sqm
    ShowroomMore than 2000 sqm.



    Exhibitions experiences
    HOOHA is not only attending Shanghai , Guangzhou exhibition, but also attending India , Thailand , Russia ,Indonesia and German exhibition and so on
    1.Shenyang Wire & Cable Industrial Exhibition
    2.Guangdong Wire & Cable Machinery Exhibition
    3.Guangzhou Wire & Cable Exhibition
    4.Shanghai International Wire & Tube Exhibition
    5.Shanghai Wire & Cable Industrial Exhibition
    6.Indonesia Wire And Cable Industrial Exhibition
    7.Dongguan UL Wire And Cable Exhibition

    What can we provide
