    450m/min Electric Power Cable Insulation Production Line

    Ask Lasest Price
    Brand Name : HOOHA
    Model Number : HH-70/80/90/120MM
    Certification : CE/ISO
    Price : US$39880-43880/1set
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 10set/1 month
    Delivery Time : 25 Working Days
    • Product Details
    • Company Profile

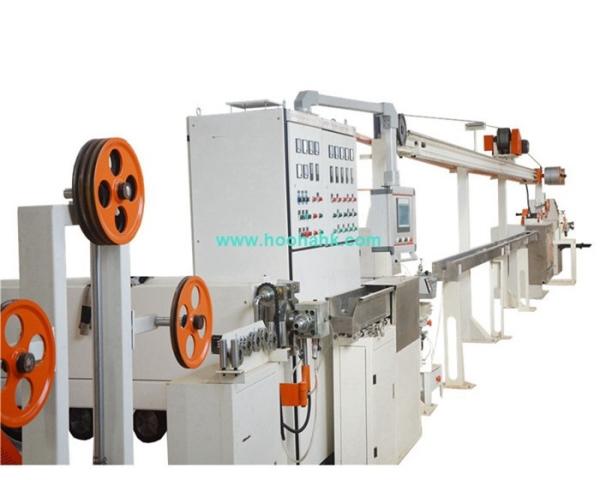

    450m/min Electric Power Cable Insulation Production Line


    450m/min Electric Power Cable Insulation Production Line


    1.Technical Parameters


    HOOHA wire and cable extrusion machine
    ModelHOOHA 50+30HOOHA 70+35
    HOOHA 90+40
    Pay off bobbinPN300-500PN400-630PN500-800
    Screw diameter50+30(sub-extruder)70+35( sub-extruder )90+40( sub-extruder )
    Screw L: D25:125:125:1
    Capacity (kg/hr)60150280
    Main motor15 HP30 HP50HP
    Wire diameterΦ0.8-2.5Φ3.5-6.0Φ4.0-15.0
    Temp control8 zone10 zone12 zone
    Cooling deviceU type single layer(18m)U type single layer(30m)U type single layer(40m)
    Pulling power3HP5HP10HP
    Accumulatorhorizontalhorizontalhorizontal
    Max accumulation250m200m150m
    Running speedMAX500MAX400MAX350
    Taking up typeDouble bobbinDouble bobbinDouble bobbin
    Taking up bobbinPN300-500PN400-630PN500-1000
    Electricity controlInverter +PLC(for elected)Inverter +PLC(for elected)Inverter +PLC(for elected)

    450m/min Electric Power Cable Insulation Production Line

    450m/min Electric Power Cable Insulation Production Line


    2. Application

    Applied to BV,BVV,BVR,RV,Nylon sheath,and halogen-free environment-friendly building wire and power cable.

    Wire and cable diameter range could be: 0.5-25 mm. We can provide the most specific equipment solution as per

    the wire and cable you will produce, the most saving and profitable solution for your project.

    450m/min Electric Power Cable Insulation Production Line

    450m/min Electric Power Cable Insulation Production Line


    3. Famous Brands Parts:

    to ensure reliable quality and performance.
    Motor:Siemens
    Inverter: Japan Yaskawa, Siemens, Taiwan Teco
    Temperature Control Meter: Japan RKC
    Auxiliary Relay: Japan Omron
    Ammeter and Voltmeter: Taiwan Risesun
    Indicator, Switch and Button: Taiwan TEND
    Contactor: Taiwan Shihlin
    Line Speed Meter: Taiwan FOTEK
    Bearing: NSK, SKF

    450m/min Electric Power Cable Insulation Production Line


    4. Package and Shipping


    Two ways: RTA (Ready to assemble, Flat Pack) and fully assembled.
    Well packed with pe film and plywood frame to avoid breakage in transportation.

    FOB shengzhen port or CIF are both available.



    4. After service

    1).Online consultancies service will be available at any time.
    2).Overseas on-site installation, pre-production testing, operation instruction and talent training.
    3).Long-term maintaining, reconstruction and upgrade services of the overall machines.
    4).Extended service, including raw material purchasing, accessory suggestions and technical advice.


    5. Company Profile & Workshop & Warehouse


    Company nameHOOHA Co.,Ltd
    Established2003
    Main productsupcast and continuous casting machine,wire extrusion machine,wire stranding machine,wire drawing machine,test machine etc.
    Value added servicefactory construction advice, cable raw material supply, cable equipment layout, cable technology support, operation training and cable testing laboratory support.
    Factory locationHumen Town,Dongguan City,Guangdong province.
    Manufacturing Center4000 sqm
    Showroom2000 sqm

    With around 20 years experience in cable machinery field, insisting on deep cooperation

    with leading cable equipment factories and cable manufacturers, Hooha has always been

    providing beneficial cable production solutions and services to our global customers.


    Now although effected by CONVID-19, we keep working hard to provide strong support to

    our customers' cable and wire project. We do pre-production test for the machines before delivery

    and make detailed video for installation and operation guidance, help our customers' project run

    smoothly.


    6. Why Choose us?

    Reliable Products:
    1.Over 20-year experienced engineer team in field of cable and wire making machines is our key to provide professional solution

    and first-rate quality products.

    2.Adopting famous brand parts such as Siemens, Yaskawa, Omron, Emerson to ensure reliable using of our products.

    3.We check every detail of the machines and do pre-production test before delivery to eusure products quality and performance.

    All-round Service:
    1.Our professional engineer team had over 5 years experience working overseas, will provide various technologies to support

    our customers, including overseas on-site installation guidance, talent training, long-term technological updating services,etc.

    2.Our rich-experience sales team will advice your concerns professionally with rigorous working attitude and high communication

    efficiency.

    Full automatic CE Certification 380V Voltage silicone rubber wire cable extrusion machine line


    7. FAQ

    Q1:Can you arrange the installation or any guidance?
    A: We have detailed video for on-line installation guidance. Although effected by the pandemic covid-19, we have
    supported more than 10 customers to run the machines via on-line support. Overseas on-site installation service is
    also availabel once we go through covid-19.

    Q2:Could you arrange the operation education?
    A:We have prepared operation book and on-line video operation guidance. Our professional engineers will provide
    on-line response timely. If needed, we can also visit your factory and provide on-site training on operation.

    Q3:What is the your difference with other supplier?
    A:What we could offer to our customers is not only the machine, also we could offer: factory design,
    production process design , QC control and, on-site installation, operation training, technology upgrading
    and raw material offering. We have cooperated with global customers in more than 30 countries.

    Q4:What's the payment terms?
    A:T/T, L/C are both available.

    Q5:How long is your product warranty?
    A: One year. After that we will still provide maintaining and repairing with charge in the whole life.

    Q6: Do you have a video tips for the machine running ?
    A. Yes , we have. You can learn more about our company and machines via our youtube channel : tiezhong chi or
    HOOHA CO.,LTD
