    380V 50HZ 25mm Copper Wire and Cable Insulation Production Line of Cable Manufacturing

    Ask Lasest Price
    Brand Name : HOOHA
    Model Number : HH-50/70/80/90/120MM
    Certification : CE/ISO
    Price : US$39880-43880/1set
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 10set/1 month
    Delivery Time : 25 Working Days
    • Product Details
    • Company Profile

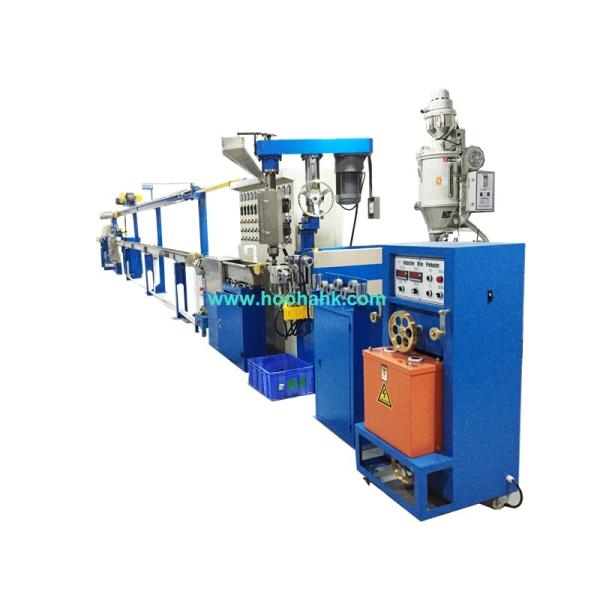

    380V 50HZ 25mm Copper Wire and Cable Insulation Production Line of Cable Manufacturing


    High Tech Manpower Saving Electrical Wire And Cable Insulation Production Line

    More information :
    Youtube:https://www.youtube.com/channel/UCrRUG2MnVoi8rfQ6FK2vYow
    Product Description

    1. Technical Parameters


    HOOHA wire and cable extrusion machine
    ModelHOOHA 50+30HOOHA 70+35
    HOOHA 90+40
    Pay off bobbinPN300-500PN400-630PN500-800
    Screw diameter50+30(sub-extruder)70+35( sub-extruder )90+40( sub-extruder )
    Screw L: D25:125:125:1
    Capacity (kg/hr)60150280
    Main motor15 HP30 HP50HP
    Wire diameterΦ0.8-2.5Φ3.5-6.0Φ4.0-15.0
    Temp control8 zone10 zone12 zone
    Cooling deviceU type single layer(18m)U type single layer(30m)U type single layer(40m)
    Pulling power3HP5HP10HP
    Accumulatorhorizontalhorizontalhorizontal
    Max accumulation250m200m150m
    Running speedMAX500MAX400MAX350
    Taking up typeDouble bobbinDouble bobbinDouble bobbin
    Taking up bobbinPN300-500PN400-630PN500-1000
    Electricity controlInverter +PLC(for elected)Inverter +PLC(for elected)Inverter +PLC(for elected)

    2. Application

    Applied to BV,BVV,BVR,RV,Nylon sheath,and halogen-free environment-friendly building wire and power cable.

    Wire and cable diameter range could be: 0.5-25 mm. We can provide the most specific equipment solution as per

    the wire and cable you will produce, the most saving and profitable solution for your project.



    3. Famous Brands Parts:

    to ensure reliable quality and performance.
    Motor: Dongguan Motor, Teco, ABB, Siemens
    Inverter: Japan Yaskawa, Siemens, Taiwan Teco
    Temperature Control Meter: Japan RKC
    Auxiliary Relay: Japan Omron
    Ammeter and Voltmeter: Taiwan Risesun
    Indicator, Switch and Button: Taiwan TEND
    Contactor: Taiwan Shihlin
    Line Speed Meter: Taiwan FOTEK
    Bearing: NSK, SKF


    4. Package and Shipping

    Two ways: RTA (Ready to assemble, Flat Pack) and fully assembled.
    Well packed with pe film and plywood frame to avoid breakage in transportation.

    FOB shengzhen port or CIF are both available.

    380V 50HZ 25mm Copper Wire and Cable Insulation Production Line of Cable Manufacturing


    4. After service

    1).Online consultancies service will be available at any time.
    2).Overseas on-site installation, pre-production testing, operation instruction and talent training.
    3).Long-term maintaining, reconstruction and upgrade services of the overall machines.
    4).Extended service, including raw material purchasing, accessory suggestions and technical advice.


    5. Company Profile & Workshop & Warehouse


    Company nameHOOHA Co.,Ltd
    Established2003
    Main productsupcast and continuous casting machine,wire extrusion machine,wire stranding machine,wire drawing machine,test machine etc.
    Value added servicefactory construction advice, cable raw material supply, cable equipment layout, cable technology support, operation training and cable testing laboratory support.
    Factory locationHumen Town,Dongguan City,Guangdong province.
    Manufacturing Center4000 sqm
    Showroom2000 sqm


    With around 20 years experience in cable machinery field, insisting on deep cooperation

    with leading cable equipment factories and cable manufacturers, Hooha has always been

    providing beneficial cable production solutions and services to our global customers.


    Now although effected by CONVID-19, we keep working hard to provide strong support to

    our customers' cable and wire project. We do pre-production test for the machines before delivery

    and make detailed video for installation and operation guidance, help our customers' project run

    smoothly.



    Customer Cases
    Algeria
    Dubai
    Syria
    Houston, USA
    Egypt

    The Technical Team
    Hu,machine designer
    Wen,plant designer
    Chen,senior engineer
    Team of service
    Name
    education
    Position
    Mainly responsible for project
    Specializing in project
    Industry working history ( year )
    zanyang Xie
    college
    General Engineer
    The total project design and planning
    power cable machine
    15
    xioahua Hu
    college
    Vis general engineer
    The total project design and planning
    net cable,data cable machine
    10
    Chnaghong Cheng
    college
    Engineer
    Drawings and after-sales service
    Teflon,Optical fiber cable machine
    25
    xiuwu Chen
    college
    General Engineer
    The total project design and planning
    copper drawing machine
    15
    lixin Yuan
    college
    Engineer
    The project design and planning
    coppwer wire making technical
    16
    zhenghai Qiu
    college
    cable engineer
    After service
    cable making and cable factory management servie
    15
    jinxin Liu
    college
    Marketing engineer
    After service
    electrical engineer
    7
    xingguo Tang
    High school
    Electrical engineer
    After service
    electrical engineer
    10
    changqiang Li
    High school
    Maintain engineer
    After service
    machina maintain and install service
    10
    haipin Li
    University
    Engineering director
    Marketing and sales
    project consulting
    8
    sen Yang
    University
    Engineering translator
    Marketing and sales
    project consulting
    5
