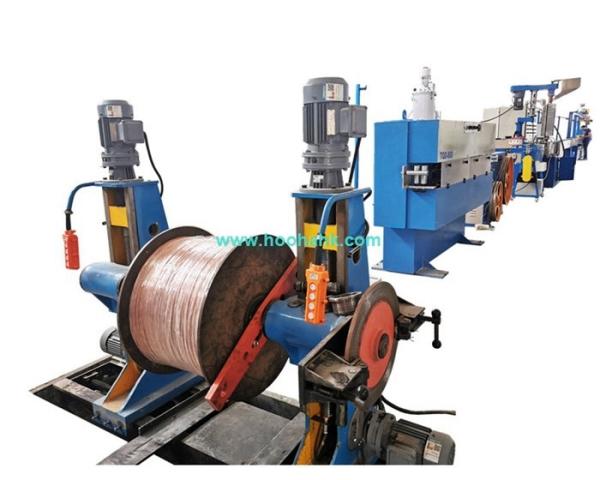

    50mm2 PE PVC Jacket Wire Extrusion Machine 200M/Min

    Ask Lasest Price
    Brand Name : HOOHA
    Model Number : HH-E-90
    Certification : CE/ISO/CCC
    Price : US$72,800 ~ 78,800/1set
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 3set/1 month
    Delivery Time : 30 Working Days
    • Product Details
    • Company Profile

    50mm2 PE PVC Jacket Wire Extrusion Machine 200M/Min

    HH-E-90 Extrusion Machine for Electrical Wire and Power Cable PE PVC Insulation and Jacket




    This production line is mainly used for extruding PE PVC insulation or jacket for electrical wire, power cable and communication cable etc with section area 6-50 square mm.


    ♦Precise extrusion process control, the error of extrusion outer diameter can be controlled within ±0.01mm

    ♦Optional removable horizontal extruder accessorial machine or other forms of accessorial machine to meet the diversified technical requirements of single injection, double injection and nylon co-extrusion.

    ♦Easy operation, start-up business friendly

    ♦Life-long maintainance with timely service and low cost


    NO.DescriptionQuantityPicture
    1800-1600 End shaft pay-off stand1 set
    2600/800 two-wheel auxiliary extraction machine1 set
    390 Host extruder1 set
    4Electrical control box1 set
    52.5m movable water tank1 set
    612m fixed water tank1 set
    712m wire accumulator1 set
    8800kg caterpillar tractor1 set
    9Diameter detector1 set
    10Ink jet printer1 set
    1115kv spark tester1 set
    12800-1600 End shaft take-up stand1 set
    13Spare parts and tools1 set
    14Diagram, operation and maintenance manual1 set

    No.ItemsFeatures
    1Inlet Wire Diameter2~20mm
    2Finished Wire Diameter3~25 mm
    3Cross Sectional Area6~50 square mm
    4Extrusion SpeedMax 200 m/min
    5Extrusion Capacity280 kg/h
    6Installed Capacity85 kva
    7Voltage380KV, can be customized
    8Weight6000 kg
    9Measurement (L*W*H)26*3.5*3.5 m
    10Workers recommendation3 workers

    Our engineer team has over 5-year experience working overseas for customer on-site service. Therefor, we can provide you widely range of support, such as overseas on-site installation, talent training, long-term technology updating services,etc.
