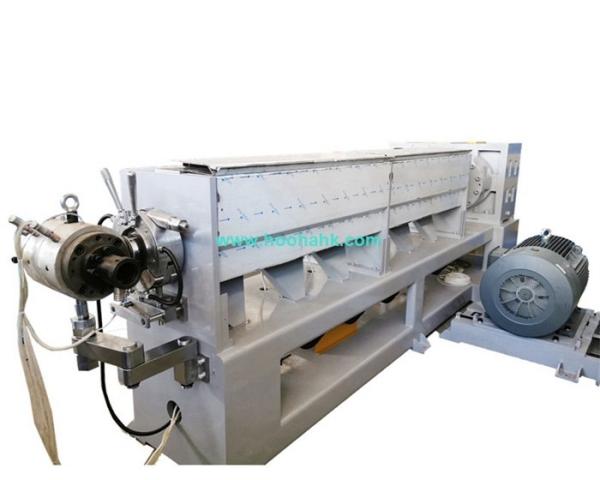

    100M/Min Single Screw 300mm2 PVC Jacket Wire Extrusion Machine

    Ask Lasest Price
    Brand Name : HOOHA
    Model Number : HH-E-120
    Certification : CE/ISO/CCC
    Price : US$117,800 ~ 122,800/1set
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 3set/1 month
    Delivery Time : 30 Working Days
    • Product Details
    • Company Profile

    100M/Min Single Screw 300mm2 PVC Jacket Wire Extrusion Machine

    HH-E-120 Extrusion Machine for Power Cable PE PVC Insulation and Jacket




    This production line is mainly used for extruding PVC insulation or jacket for power cable and communication cable etc with section area 100-300 square mm.



    ♦Precise extrusion process control, the error of extrusion outer diameter can be controlled within ±0.01mm.

    ♦It can produce high strength, high temperature resistance, aging resistance, chemical resistance, insulation, and flame retardant power cable extrusion screws. The reducer and mold are specially designed to ensure product quality.

    ♦The whole line can be equipped with Chinese and English man-machine interface, intelligent control, and reliable performance.

    ♦Life-long maintenance with timely service and low cost.


    NO.DescriptionQuantityPicture
    11600-2500 End shaft pay-off stand1 set
    2800KG caterpillar tractor1 set
    35-wheel Straightening device1 set
    4120 Host extruder1 set
    5Electrical control box1 set
    62.5m movable water tank1 set
    724m fixed water tank1 set
    81600KG caterpillar tractor1 set
    9Diameter detector1 set
    10Ink jet printer1 set
    11Spark tester1 set
    121600-2500 End shaft take-up stand1 set
    13Spare parts and tools1 set
    14Diagram, operation and maintenance manual1 set

    No.ItemsFeatures
    1Inlet Wire Diameter15~60mm
    2Finished Wire Diameter20~80 mm
    3Cross Sectional Area100~300 square mm
    4Extrusion SpeedMax 100 m/min
    5Extrusion Capacity400 kg/h
    6Installed Capacity180 kva
    7Voltage380KV, can be customized
    8Weight12000 kg
    9Measurement (L*W*H)55*6*5 m
    10Workers recommendation3 workers

    Reliable Products:
    1.Over 20-year experienced engineer team in field of cable and wire making machines to guarantee professional solution and first-rate quality products.

    2.Adopting famous brand parts such as Siemens, Yaskawa, Omron, Emerson to ensure reliable using of our products.

    3.We check every detail of the machines and do pre-production test before delivery to eusure products quality and performance.

    All-round Service:
    1.Our professional engineer team had over 5 years experience working overseas, will provide various technologies to support our customers, including overseas on-site installation guidance, talent training, long-term technological updating services,etc.

    2.Our rich-experience sales team will advice your concerns professionally with rigorous working attitude and high communication efficiency.
