22AWG Copper PVC LSZH PE Cat8 SFTP Network Cable

Ask Lasest Price
Brand Name :	HOOHA
Model Number :	CAT8
Certification :	CE, ROHS
Price :	USD 0.5/M
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	500 Million Meters Per Year
Delivery Time :	5-10 working days

Add to Cart

Product Details
Company Profile

22AWG Copper PVC LSZH PE Cat8 SFTP Network Cable

PVC LSZH PE Cat8 SFTP Network Cable LAN Cable 22AWG Copper with CE, ROHS

1. Description

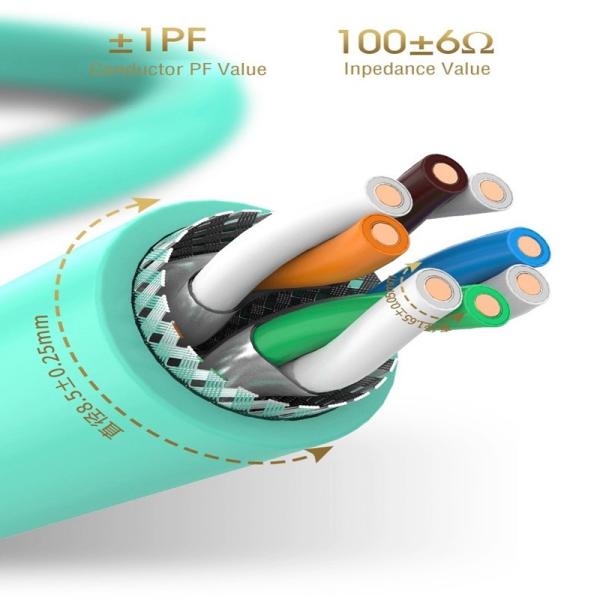

1. What is the CAT8? Class 8 cable is a copper cable integrated cabling system with a maximum transmission bandwidth of 2000MHz and a transmission rate of 40Gbps.The standard wire gauge is 22AWG (0.64mm).Cable structure: S/FTP;That is, the line of aluminum foil shielding, weaving net total shielding.The permanent link cabling distance is not more than 24 meters, and the channel cabling distance is not more than 30 meters.Currently, it is mainly used in data centers.

2. CAT8 in ISO and TIA naming.ISO defines the transmission performance of eight types of lines in ISO 11801-2017.Also, name the eight CLASS lines: CLASSI and CLASSII.The transport performance of the eight lines is also defined in TIA 568D.And named CAT8.1, CAT8.2

2.Specification

MODEL	CAT8 LAN CABLE

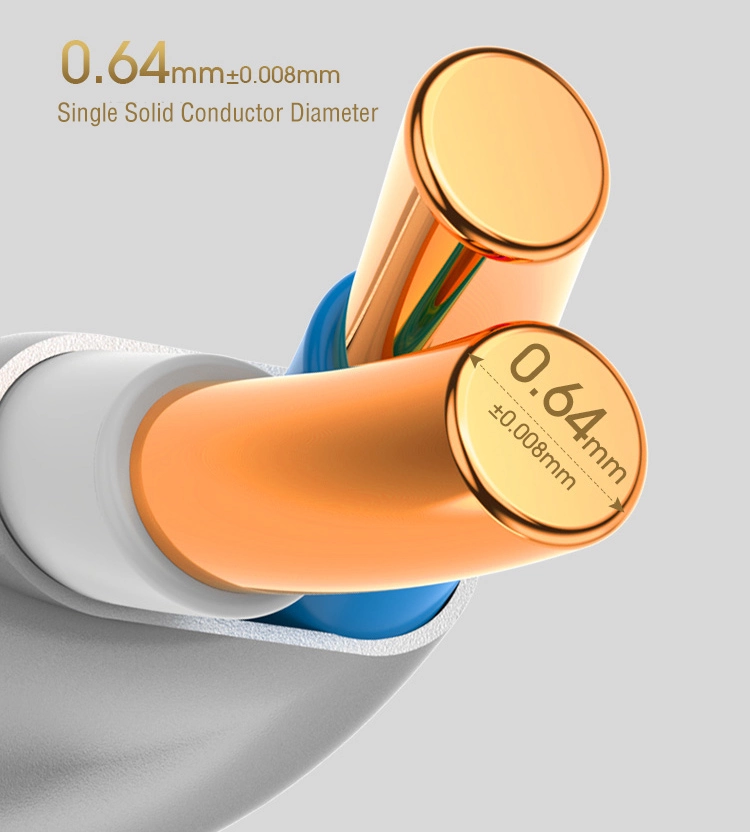

CONDUCTOR	BARE COPPER 22AWG
INSULATION	FOAM HDPE
1ST LAYER	ALUMINIUM FOIL PER PAIR
2ND LAYER	BC/CCA BRAIDING OVERALL
JACKET	PVC/LSZH

3.Application

4.Packing

1.Wooden reel, plastic reel,paper reel,carton box
2.100m:PE protective layer, 5 roll per carton box
3.305m:one roll in one carton box, two carton boxes in one master carton
4.500m:wooden roll package, carton box as outer package

5. Delivery

LCL Delivery	<50Rolls	<100Rolls	<500Rolls
	25 Days	22 Days	20 Days

FCL Delivery	1*20GP	1*40GP	1*40HQ
	15~18 Days	15~18 Days	15~18 Days

6. Choose Us

HOOHA Market

We have provided professional wire and cable solution for more than 100 customers around the world. The main markets are as follow

1.Southeast Asia(eg:Indonesian customer Pt sinarmonas industries)

2.South Asia(eg:Indian customer ESSEM Srinisons Systems Pvt Ltd.)

3.East Asia(eg:Japanese customer KDK Electric wire Co.,Ltd.)

4.North America(eg:American customer General technologies, Inc.)

5.South America (eg:Brazilian customer Fibracem Teleinformatica Ltda)

6.Eastern Europe(eg:Ukrainian customer Deep Networks Group)

7.Africa(eg:Angola customer W-VOA-fabrica de cabos de angola,lda.)

8.The Middle East(eg:Dubai customers Power Plus Cable Co., L.L.C.), etc.

HOOHA provides a series of solutions in cable and die casting field to help promote improvement of our customers’ business. we not only provide equipment and solutions, but also focus on offering high-quality service such as free drawing design, overseas technical guidance, talent training and so on.

Besides, HOOHA is specialized in turn-key project. Being in the cable and die casting Industry for almost two decades, we have our own engineer team with over 20-year work experience in Chinese leading cable and die casting companies which guarantees reliable and advanced technical support.

With rich experience and energetic service passion,we are always dedicated to providing customers with advanced solutions and all-round service.
