    Communication CCTV CATV CPR ECA RG11 Coaxial Cable

    Ask Lasest Price
    Brand Name : HOOHA
    Model Number : Rg11 Coaxial Cable
    Certification : CE/RoHS
    Price : USD 0.4/M
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 500 Million Meters Per Year
    Delivery Time : 5-10 working days
    • Product Details
    • Company Profile

    Communication CCTV CATV CPR ECA RG11 Coaxial Cable


    Communication CCTV CATV CPR Eca Rg11 Coaxial Cable


    1. Description


    RG11 cable is a special kind of coaxial cable.

    It's built for longer runs, and in general you'll find that you can run 50-100 feet longer with RG11 and still keep an acceptable signal level.

    RG11 cable is made for special purposes like burial or very long runs.

    It's so thick that it needs special connectors and is very hard to bend.



    2. Product details


    Model Number : RG11

    Number of Conductors : 1

    Type :Trunk Cable

    Model : RG11 Trunk Cable

    Certification : CE/RoHS

    Inner Conductor : 1.63+/-0.02 Bare Copper / CCS

    Dielectric:FPE

    Out Conductor : Al Foil +70%, 90%, 95% Braid

    Braid Material : Al-Mg, CCA, BC, TC

    Out Jacket : 10.0+3.1mm PVC/PE

    Color : White, Black or Customized

    Steel:1.83mm

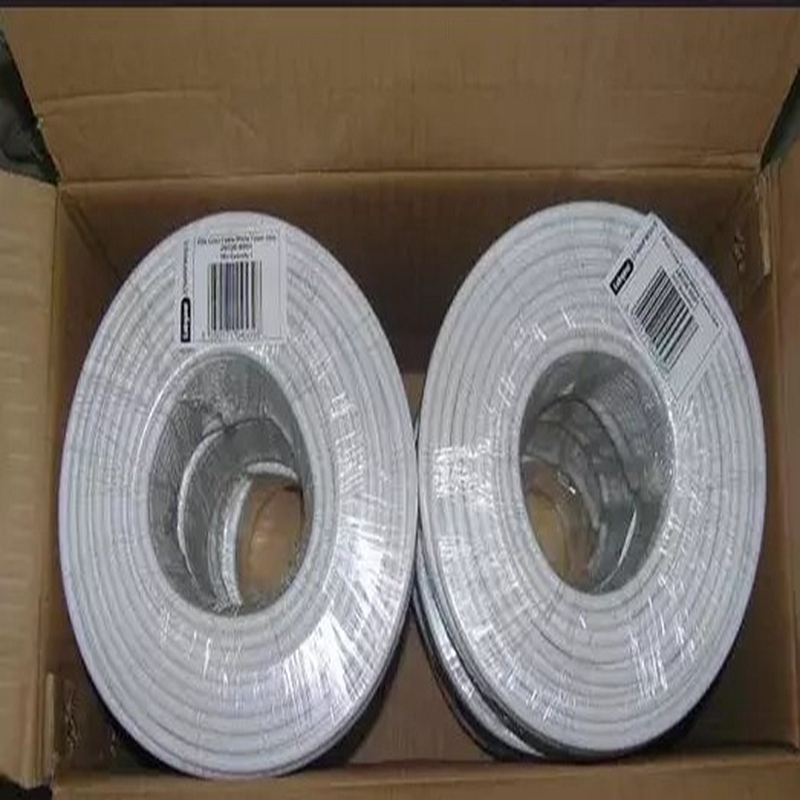

    3. Packaging Details


    Packaging Details:White, Black or Customized

    Can be packed in clarity film, several rolls into one carton

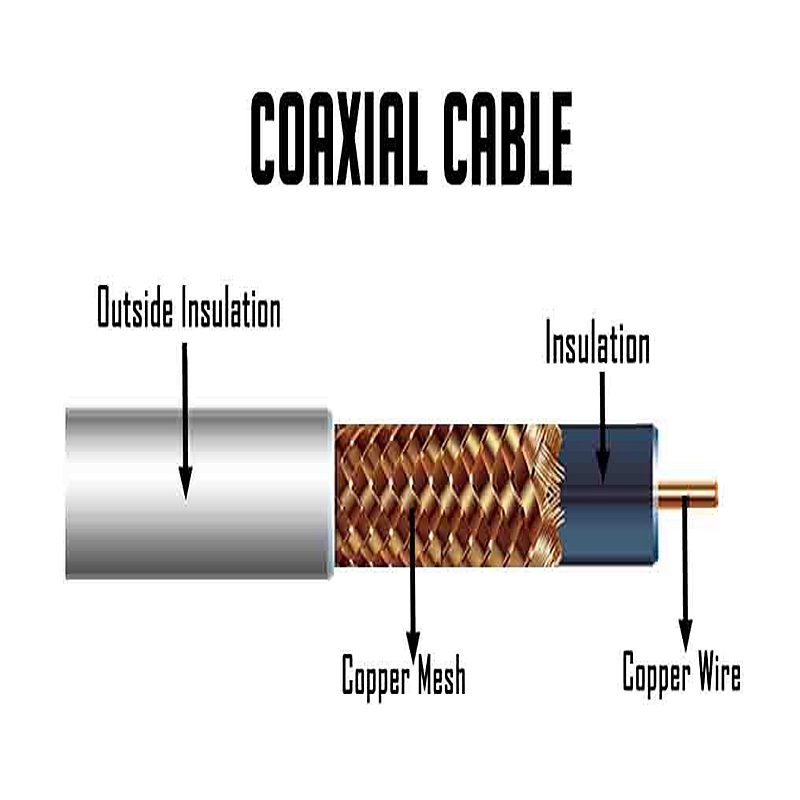

    4. Construction & Performance


    ConstructionConductorMaterialCopper Clad Steel
    Diameter(mm)1.63±0.02
    InsulationMaterialFoaming PE
    Diameter(mm)7.11±0.10
    Outer ShieldMaterialAL foil+AL/mg wire braiding
    Density61%
    Diameter(mm)10.00+3.10
    PerformanceMinimum Bending Radiusmm34(indoor)
    Minimum Bending Temperature-20
    Storage Temperature-20~+70
    Installation Temperature-20~+50
    Operating Temperature-20~+75


    5. Electrical Properties


    CapacitancepF/m53±2
    Velocity%86
    Insulation ResistanceMΩ·km>5000
    Cut-off FrequencyGHz3
    Insulation withstand VoltageKV1
    Jacket Spark VoltageKV2
    Attenuation (dB/100m)50MHz≤9.0
    100MHz≤10.8
    200MHz≤11.8
    800MHz≤19.00
    1000MHz≤20.0
    Shielding Effectiveness (dB)55MHz≥55
    300MHz≥60
    1000MHz≥65
    Return Loss (dB)5~470MHz≥20
    470~862MHz≥20
    862~2200MHz≥18

    6. What does HOOHA focuses on


    1.Professional and customized cable and die casting solutions

    2.Suggestions and guidance of the overall cable factory operation

    3.Overseas on-site installation and operation instruction

    4.Cost accounting service of overall production operation

    5.Talent delivery and training service

    6.Lifetime after-sales online consultation service

    7.Maintenance, reconstruction and upgrade services of the overall equipment

    8.Additional support, such as raw material or accessories supply and suggestions, etc.



    7.HOOHA service


    Pre-sales


    1.Experienced engineer team provides customized solutions and drawing

    2.Professional engineer team provides overseas face-to-face service to offer advice and solution

    3.Advanced trading system guarantees high-efficient communication

    4.High-performance team including experienced salesmen,order supervisors, shipping managers, finance managers, technical engineers would give you more detailed and accurate consultation service


    Mid-sale


    1.Professional follow-up system ensures high-quality service including live production video shooting,etc

    2.Quality control system with professional engineers ensures project goes smoothly

    3.Quality checking service with a test report before delivery ensures products quality


    After-sale


    1.Overseas on-site installation guidance and technical support including previous testing, operation instruction and talent training

    2. Free lifetime online consultation service

    3. Long-time maintenance, reconstruction and upgrade services of the equipment

    4. Additional service support, such as raw material or accessories supply and suggestions, etc.
