PVC LSZH Unshielded Twisted 4 Pairs UTP CAT6A LAN Cable

Ask Lasest Price
Brand Name :	HOOHA
Model Number :	CAT6A
Certification :	CE, RoHS
Price :	USD 0.5/M
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	500 Million Meters Per Year
Delivery Time :	5-10 working days

Add to Cart

Product Details
Company Profile

PVC LSZH Unshielded Twisted 4 Pairs UTP CAT6A LAN Cable

PVC, LSZH Unshielded Twisted 4 Pairs Network Cable UTP CAT6A LAN Cable

1. Description

In terms of performance, the parameters of the six types of unshielded twisted pair are significantly improved compared to the previous five super five types, and the transmission frequency is also extended to 250MHz or higher.Super 6 cable, also known as 6A, can support 10 megabits of Internet access, and the current maximum can reach 500MHz, twice as much as the 6 cable.The purpose of adding cross frame to six type network cable and super six type network cable is to solve the problem of "crosstalk" which is common in six types of transmission.The Super 6 class uses a geared wired groove shape to effectively change the enhanced signal to prevent signal attenuation minimization.

2.Specification

Number of Conductors:8

Product name:Network Cable

Category:CAT6a UTP

Specifications:4 pairs

Conductor:0.57mm(23AWG), 0.51mm(24AWG), 0.4mm(26AWG)

Conductor Material:Bare copper, Standard copper, CCA, CCS

Shield:UTP(Unshielded Twisted Pair)

Jacket:PVC, LSZH

Color:Blue

Length: 305m

Application:PC, ADSL, network Module Plate, Wall Socket, etc

3. Parameter

Product name	Network Cable
Category	CAT6a UTP
Specifications	4 pairs
Shape	Round
Material	Bare copper, Standard copper, CCA, CCS
Shield	UTP(Unshielded Twisted Pair)
Jacket	PVC, LSZH
Color	Blue
Meters	305m
Application	Telecommunication, Computer networks, Instrumentation

Product Name	CAT6A 23AWG 0.57mm BARE COPPER Lan CABLE PVC Jacket
Inner conductor	Material	BARE COPPER
	Diameter	0.57 ± 0.01mm (23AWG)
Insulation	Material	Color-coded PE (Polyethylene)
(Dielectric)	Thickness	≥ 0.21mm
	Diameter	1.35 ± 0.05mm
Shielded Layer	First Layer	Aluminum Foil (or None)
	Second Layer	Copper or CCA Braiding (or None)
	Drain wire	Tinned copper 0.4mm (or None)
Cross Separator	Material	Plastic
Outer Jacket	Material	PVC (or LSZH/PE, Single/Double Jacket)
	Nominal O.D	7.4mm ± 0.30mm
	Color	Any
Twisted pair	N/A	Pair 1 : Blue, White / Blue
		Pair 2 : Orange, White / Orange
		Pair 3 : Green, White / Green
		Pair 4 : Brown, White / Brown

4. Feature

1. CAT6A FTP cable complies with Category 6 UL444, ANSI/ TIA/ EIA 568B and ISO/ IEC 11801 Standerd.
2. Support Transmission of digital and analogue voice, data and video signal.
3. Rated Temperature: -20℃ to 75℃.

5. Delivery

LCL Delivery	<50Rolls	<100Rolls	<500Rolls
	25 Days	22 Days	20 Days

FCL Delivery	1*20GP	1*40GP	1*40HQ
	15~18 Days	15~18 Days	15~18 Days

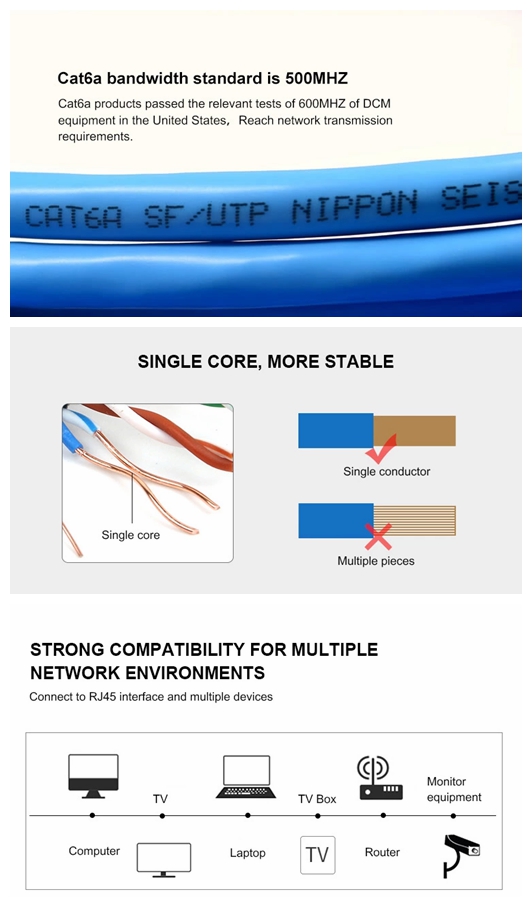

6. Detail photos

7.Notice

8. Why Us

HOOHA Introduction

We are a Hong kong company, focusing on in-depth cooperation with Chinese leading manufacturers to provide advanced wire&cable solutions and die casting products.

Now we are continuously updating our technology, making great effort to keep improving our design level and R & D strength to provide customers with more superior cable and die casting solutions.

What is important to us ?

1.Quality, our engineers work with service colleagues.We are committed to enabling engineers to learn more about customer feedback from the service team.

2.Customers' comfortable purchasing experience.We pay attention to the actual needs of customers, and hope to bring customers high-efficiency products and intimate service, our services cover pre-sales and after-sales, committed to let customers save time and cost, and reduce worries

3.Customers' success.We not only focus on the sales of products, but also pay attention to the development of our customers. We pursue growing together with customers by providing long-term support and suggestions to help them achieve success.

4.Supply more environmentally friendly products.

5.Give back to the community and help more people.
