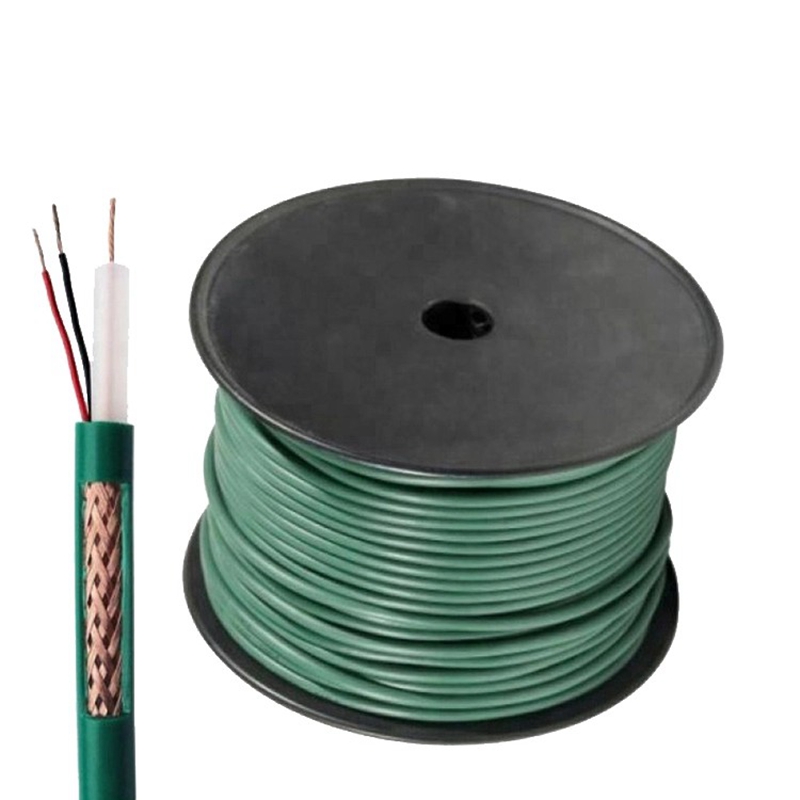

    CPR RG59 2DC Coaxial Communication Cable With PE PVC Jacket

    Ask Lasest Price
    Brand Name : HOOHA
    Model Number : RG59+2DC
    Certification : CE, RoHS, CPR
    Price : 0.4 USD/M
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 500 Million Meters Per Year
    Delivery Time : 5-10 working days
    • Product Details
    • Company Profile

    CPR RG59 2DC Coaxial Communication Cable With PE PVC Jacket

    Rg59+2DC with Power Cable for Local Communication Cable, Coaxial Cable, LAN Cable

    1. Description


    Application:Local Communication Cable, Coaxial Cable, LAN Cable

    Conductor Material:BC/CCS/CCA/TC/CU/CCAG

    Cover Material:PE/PVC

    Type:Coaxial Cable

    Material Shape:Round Wire

    Conductor Type:Solid

    Wire Core Material:Bare Copper Wire

    Certification:CE, RoHS, CPR

    Model:Rg59+Power Cable

    Inner Conductor:CCS, Cu ,CCA,Tc,etc

    Insulation:PE,Foaming PE

    Shield:Al Foil,Copper Foil

    Braiding Material:Al, CCA,Cu, Tcu etc.

    Braiding Coverage:30%, 45%, 60%, 80%, 90% etc.

    Jacket:PVC, PE

    Color:White, Black, Yellow,Green etc

    Trademark:OEM

    Transport Package:Roll,Wooden Spool,Plastic Reel,Gift Box,Pully Box

    Specification:Copper or Copper Clad Steel

    HS Code:85442000


    2.Electrical Properties


    CapacitancepF/m53
    Velocity%86
    Insulation ResistanceMΩ·km>5000
    Cut-off FrequencyGHz3
    Insulation withstand VoltageKV1
    Jacket Spark VoltageKV2
    Attenuation (dB/100m)50MHz≤9.0
    100MHz≤10.8
    200MHz≤11.8
    800MHz≤19.00
    1000MHz≤20.0
    Shielding Effectiveness (dB)55MHz≥55
    300MHz≥60
    1000MHz≥65
    Return Loss (dB)5~470MHz≥20
    470~862MHz≥20
    862~2200MHz≥18

    3.Construction & Performance


    constructionConductorMaterialCopper Clad Steel
    Diameter(mm)0.81±0.02
    InsulationMaterialFoaming PE
    Diameter(mm)3.66±0.10
    Outer ShieldMaterialAL foil+AL/mg wire braiding
    Density61%
    Diameter(mm)6.10+4.50
    Power CableConductor(mm)15*0.23CCA or 7*0.37CCA
    Insulation(mm)1.70PE
    PerformanceMinimum Bending Radiusmm34(indoor)
    Minimum Bending Temperature-10
    Storage Temperature-10~+75
    Installation Temperature-10~+50
    Operating Temperature-10~+75

    4.Product details


    Model Number : RG59+2DC Number of Conductors : 1
    Type : Coaxial
    Model : RG59+2DC Camera Cable
    Certification : CE/RoHS
    inner Conductor : 0.81+/-0.02 Bare Copper / CCS
    Dielectric : 3.80- 3.90mm FPE Braid Coverage: Al Foil +70%, 90%, 95% Braid
    Braid Material : Al-Mg, CCA, BC, TC Out Jacket : PVC/PE
    Color : White, Black or Customized Diameter(mm):6.10+4.50
    Power Cable Conductor(mm):15*0.23CCA or 7*0.37CCA
    Power Cable Insulation(mm):1.70PE

    5. HOOHA Introduction


    We are a Hong kong company, focusing on in-depth cooperation with Chinese leading manufacturers to provide advanced wire&cable solutions and die casting products.


    Now we are continuously updating our technology, making great effort to keep improving our design level and R & D strength to provide customers with more superior cable and die casting solutions.


    6. Choose Us


    Pre-sales


    1.Experienced engineer team provides customized solutions and drawing

    2.Professional engineer team provides overseas face-to-face service to offer advice and solution

    3.Advanced trading system guarantees high-efficient communication

    4.High-performance team including experienced salesmen,order supervisors, shipping managers, finance managers, technical engineers would give you more detailed and accurate consultation service


    Mid-sale


    1.Professional follow-up system ensures high-quality service including live production video shooting,etc

    2.Quality control system with professional engineers ensures project goes smoothly

    3.Quality checking service with a test report before delivery ensures products quality


    After-sale


    1.Overseas on-site installation guidance and technical support including previous testing, operation instruction and talent training

    2. Free lifetime online consultation service

    3. Long-time maintenance, reconstruction and upgrade services of the equipment

    4. Additional service support, such as raw material or accessories supply and suggestions, etc.
