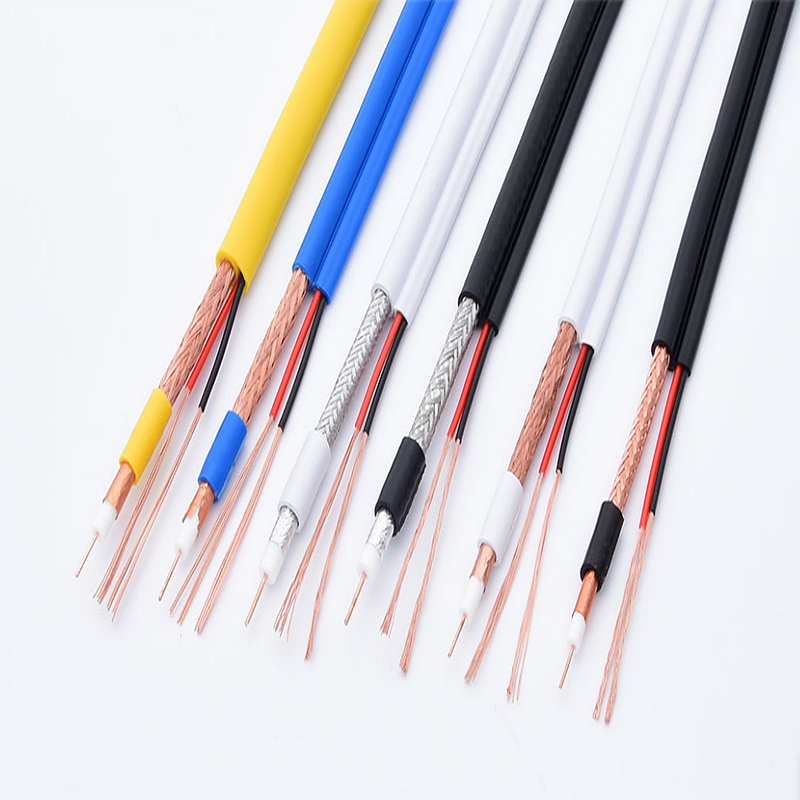

    PE PVC Jacket RG59 2DC Coaxial Cable For Local Communication

    Ask Lasest Price
    Brand Name : HOOHA
    Model Number : RG59+2DC
    Certification : CE, RoHS, CPR
    Price : USD 0.4/M
    Supply Ability : 500 Million Meters Per Year
    Delivery Time : 5-10 working days
    Payment Terms : L/C, T/T, Western Union
    • Product Details
    • Company Profile

    PE PVC Jacket RG59 2DC Coaxial Cable For Local Communication

    Local Communication Cable, Coaxial Cable, LAN Cable Rg59+2DC type for Power Cable

    1. Description


    Application:Local Communication Cable, Coaxial Cable, LAN Cable

    Wire Core Material:Bare Copper Wire

    Certification:CE, RoHS, CPR

    Color:White, Black, Yellow,Green etc

    Conductor Material:BC/CCS/CCA/TC/CU/CCAG

    Inner Conductor:CCS, Cu ,CCA,Tc,etc

    Shield:Al Foil,Copper Foil

    Material Shape:Round Wire

    Conductor Type:Solid

    Cover Material:PE/PVC

    Type:Coaxial Cable

    Trademark:OEM

    Transport Package:Roll,Wooden Spool,Plastic Reel,Gift Box,Pully Box

    Specification:Copper or Copper Clad Steel

    HS Code:85442000

    Model:Rg59+Power Cable

    Braiding Material:Al, CCA,Cu, Tcu etc.

    Braiding Coverage:30%, 45%, 60%, 80%, 90% etc.

    Jacket:PVC, PE


    2.Product details


    Model Number : RG59+2DC Number of Conductors : 1
    Type : Coaxial
    Model : RG59+2DC Camera Cable
    Certification : CE/RoHS
    inner Conductor : 0.81+/-0.02 Bare Copper / CCS
    Dielectric : 3.80- 3.90mm FPE Braid Coverage: Al Foil +70%, 90%, 95% Braid
    Braid Material : Al-Mg, CCA, BC, TC Out Jacket : PVC/PE
    Color : White, Black or Customized Diameter(mm):6.10+4.50
    Power Cable Conductor(mm):15*0.23CCA or 7*0.37CCA
    Power Cable Insulation(mm):1.70PE


    3.Electrical Properties


    CapacitancepF/m53
    Velocity%86
    Insulation ResistanceMΩ·km>5000
    Cut-off FrequencyGHz3
    Insulation withstand VoltageKV1
    Jacket Spark VoltageKV2
    Attenuation (dB/100m)50MHz≤9.0
    100MHz≤10.8
    200MHz≤11.8
    800MHz≤19.00
    1000MHz≤20.0
    Shielding Effectiveness (dB)55MHz≥55
    300MHz≥60
    1000MHz≥65
    Return Loss (dB)5~470MHz≥20
    470~862MHz≥20
    862~2200MHz≥18

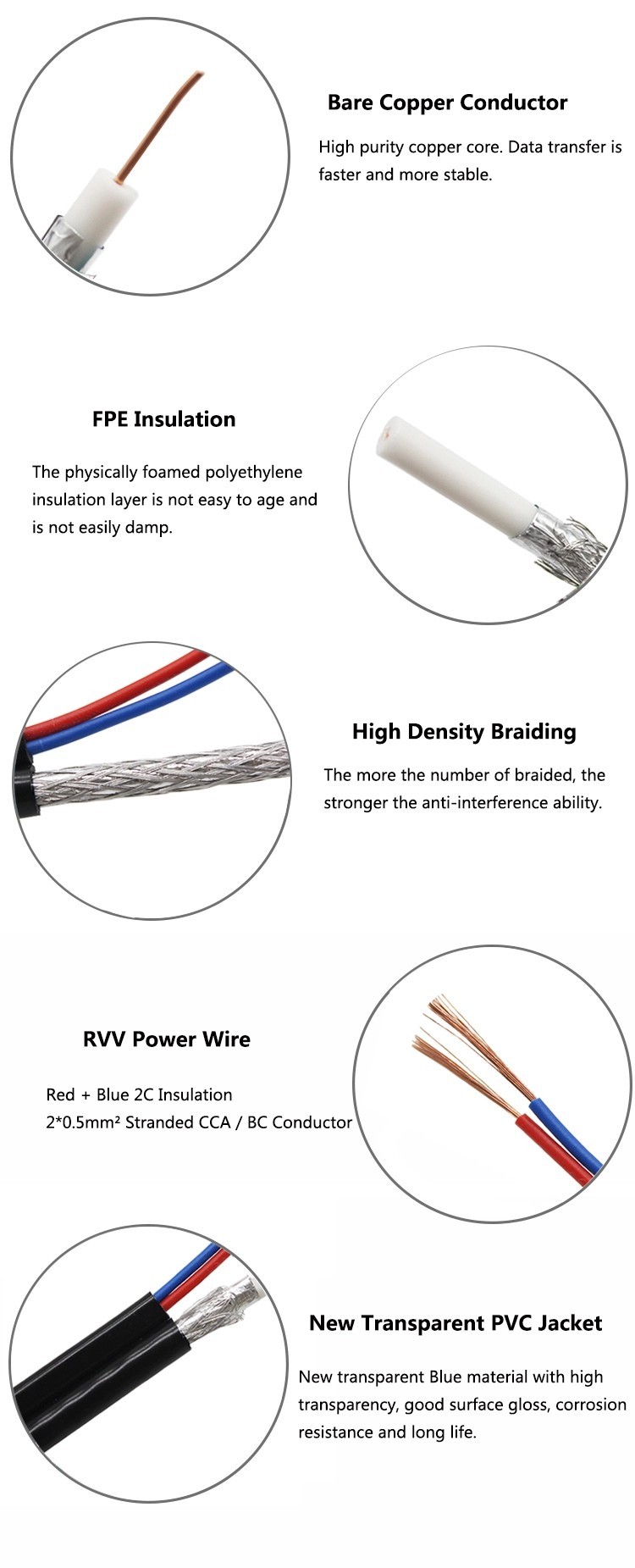

    4.Construction & Performance


    constructionConductorMaterialCopper Clad Steel
    Diameter(mm)0.81±0.02
    InsulationMaterialFoaming PE
    Diameter(mm)3.66±0.10
    Outer ShieldMaterialAL foil+AL/mg wire braiding
    Density61%
    Diameter(mm)6.10+4.50
    Power CableConductor(mm)15*0.23CCA or 7*0.37CCA
    Insulation(mm)1.70PE
    PerformanceMinimum Bending Radiusmm34(indoor)
    Minimum Bending Temperature-10
    Storage Temperature-10~+75
    Installation Temperature-10~+50
    Operating Temperature-10~+75



    5. HOOHA Introduction


    We are a Hong kong company, focusing on in-depth cooperation with Chinese leading manufacturers to provide advanced wire&cable solutions and die casting products.


    Now we are continuously updating our technology, making great effort to keep improving our design level and R & D strength to provide customers with more superior cable and die casting solutions.


    6. HOOHA Market


    We have provided professional wire and cable solution for more than 100 customers around the world. The main markets are as follow

    1.Southeast Asia(eg:Indonesian customer Pt sinarmonas industries)

    2.South Asia(eg:Indian customer ESSEM Srinisons Systems Pvt Ltd.)

    3.East Asia(eg:Japanese customer KDK Electric wire Co.,Ltd.)

    4.North America(eg:American customer General technologies, Inc.)

    5.South America (eg:Brazilian customer Fibracem Teleinformatica Ltda)

    6.Eastern Europe(eg:Ukrainian customer Deep Networks Group)

    7.Africa(eg:Angola customer W-VOA-fabrica de cabos de angola,lda.)

    8.The Middle East(eg:Dubai customers Power Plus Cable Co., L.L.C.), etc.


    7. Choose Us


    HOOHA provides a series of solutions in cable and die casting field to help promote improvement of our customers’ business. we not only provide equipment and solutions,

    but also focus on offering high-quality service such as free drawing design, overseas technical guidance, talent training and so on.


    Besides, HOOHA is specialized in turn-key project. Being in the cable and die casting Industry for almost two decades,

    we have our own engineer team with over 20-year work experience in Chinese leading cable and die casting companies which guarantees reliable and advanced technical support.


    With rich experience and energetic service passion,we are always dedicated to providing customers with advanced solutions and all-round service.
