    Surveillance Camera Monitoring RG59 Cable With F Compression Connector

    Ask Lasest Price
    Brand Name : HOOHA
    Model Number : RG59
    Certification : CE ISO
    Price : USD 0.4/M
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 500 Million Meters Per Year
    Delivery Time : 5-10 working days
    • Product Details
    • Company Profile

    Surveillance Camera Monitoring RG59 Cable With F Compression Connector

    Surveillance Camera Monitoring Rg59 Security Cable with F Compression Connector


    1. Application


    Application: Local Communication Cable, Coaxial Cable, LAN Cable



    2. Description


    Conductor Material:BC/CCS/CCA/TC/CU/CCAG

    Cover Material:PE/PVC

    Material Shape:Round Wire

    Conductor Type:Solid

    Wire Core Material:Bare Copper Wire

    Certification:CE, ISO, RoHS, CPR

    Model:Rg59

    Inner Conductor:CCS, Cu ,CCA,Tc,etc

    Insulation:PE,Foaming PE

    Shiled:Al Foil,Copper Foil

    Braiding Material:Al, CCA,Cu, Tcu etc.

    Braiding Coverage:30%, 45%, 60%, 80%, 90% etc.

    Jacket:PVC, PE

    Color:White, Black, Yellow,Green etc.

    Trademark:OEM

    Transport Package:Roll,Wooden Spool,Plastic Reel,Gift Box,Pully Box

    Specification:Copper or Copper Clad Steel


    3.Attenuation


    Frequency (MHz)Maximum (dB/100 m)
    52.82
    556.73
    18711.81
    35015.75
    55019.52
    75022.87
    86524.67
    100026.64
    145032.05
    180035.59
    200039.04

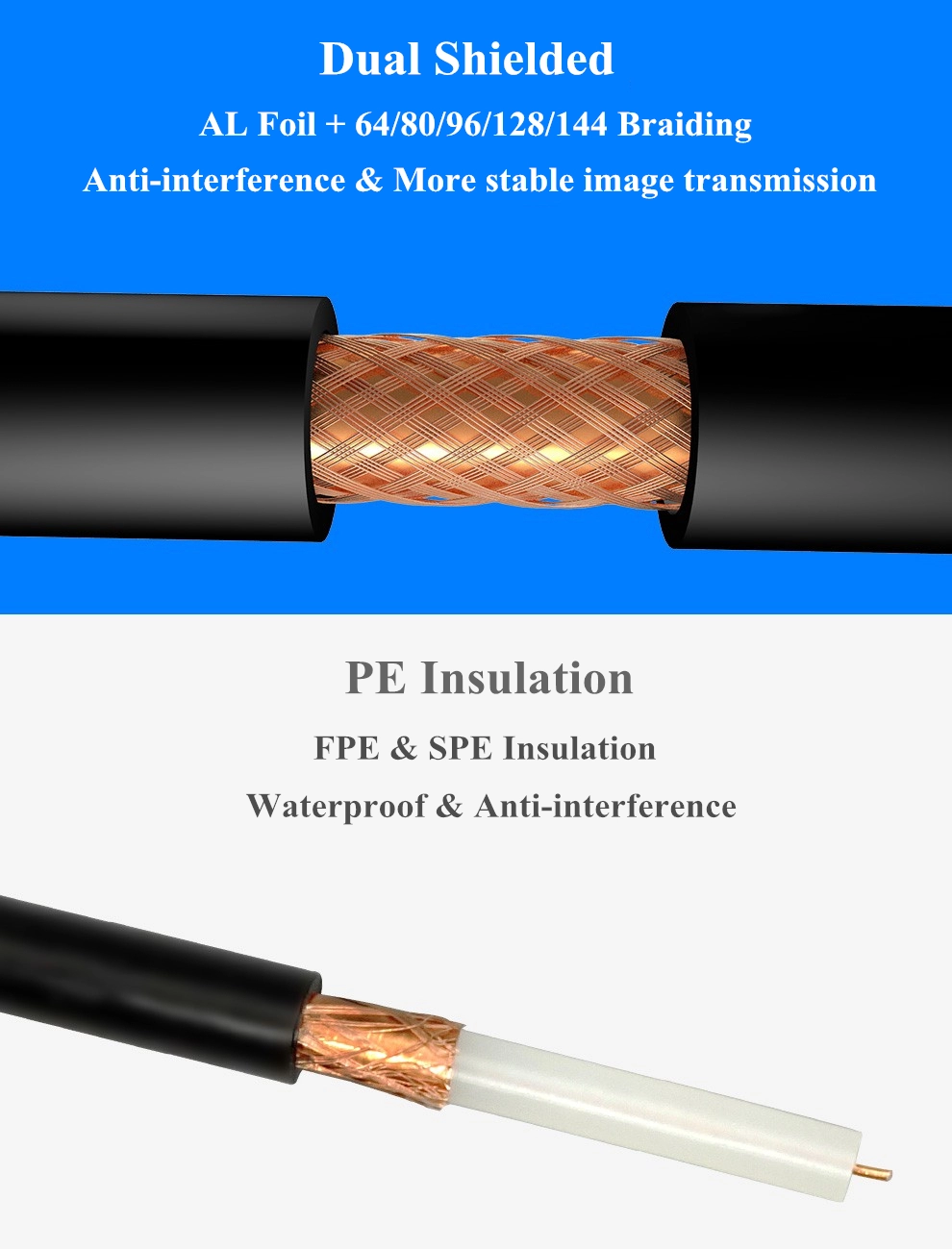

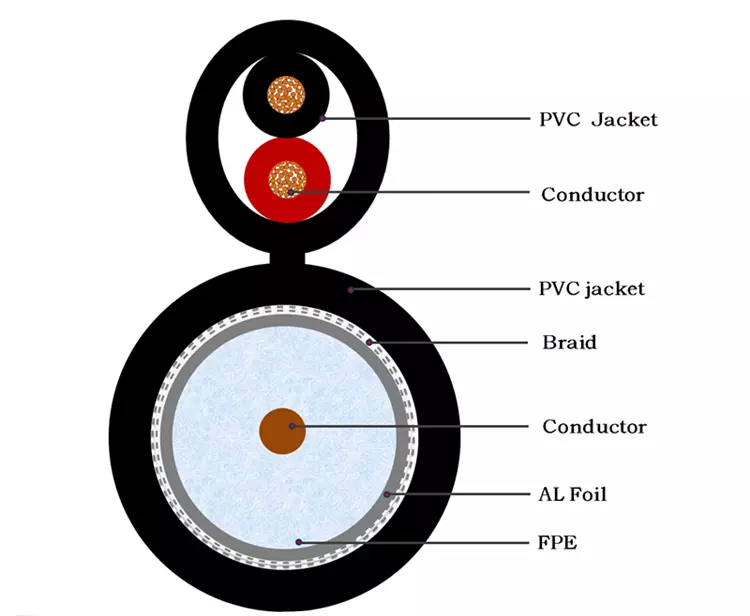

    4.Construction


    (1)Center Conductor: 0.81±0.02mm BC
    (2)Dielectric: 3.66±0.10mm FPE
    (3)Braid: Al Foil + 80*0.16mm Al/Mg
    (4)Jacket: 6.10±0.20mm PVC


    5.Options


    Inner Conductor:BC/CCS/CCA/TC/SC Available
    Dielectric:Foam PE/Solid PE
    First Shield:Foil:Copper/ Aluminum Foil,(Un-bonded,Bonded,Double bonded, double un-bonded, Copper colored )
    Second Shield:Al,CCA,BC,TC CCS Available
    Wire Diameter:0.11,0.12,0.15,0.16mm Available
    Braiding Net:32#,48#,64#,80#,96#,112#,128#,144#
    Jacket:PVC/PE (black,white,color)

    6. Characteristics


    Impedance:75+3 Ohm
    Capacitance:53+3pF/m
    Velocity of Propagation:85%
    Return Loss:20dB min (5-2300MHz)



    7.Our Packing


    (1)Packing Lengths:100/roll,200 m/roll, 300m/roll. 305m/roll (10m,15m,20m,25,30m,50m,100m)
    (2)Inner Packing: Wooden reel, plastic reel,paper reel,and gift box
    (3)Outer Packing: Carton box, pully box, pallet available

    8. Note


    Note:Any packing available according to your request.


    Note:BC:Bare Copper CCS:Copper Clad Steel CCA:Copper Clad Aluminum TC :Tinning Copper SC:Silver-Plated Copper


    9. FAQ


    (1) Q: Can you print our logo or company name in cable?
    A: Yes,we can print your logo or company name on products.
    (2)Q:Can you accept customize or design for us?
    A: Yes, all communication cables are customized in our own factory and we can design for you according to your requirement.
    (3)Q:Is it possible to get a free sample ?
    A: Yes, samples are free,and shipping cost have to be paid by your esteemed company. But we will return the sample cost to you when we receiving your initial order.
    (4)Q:What is your MOQ ?
    A:Usually,our coaxial cable MOQ is 100 thousand meters.
    (5)Q:If I want to purchase,how to pay?
    A:Usually, we do T/T in 40% deposit before production,60% balance against copy of B/L.Also payment terms are negotiable depending on customer's request.



    (
