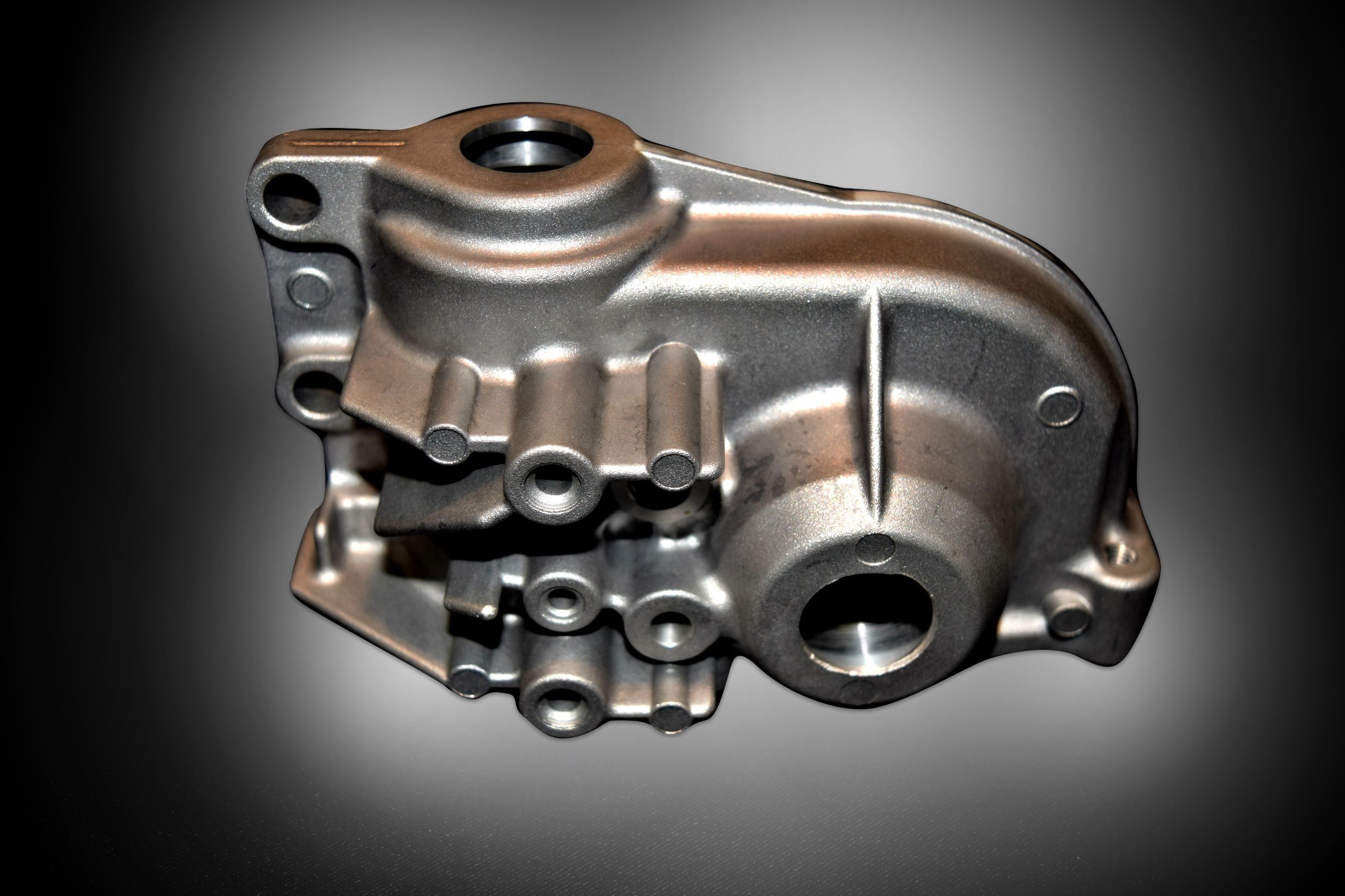

    Auto Transmission Housing Aluminum Die Casting with JIS Standard

    Ask Lasest Price
    Brand Name : HOOHA
    Model Number : Aluminum die casting-001
    Certification : CE/ISO
    Price : 980 usd / set
    Payment Terms : L/C, T/T
    Supply Ability : 5000 pieces / month
    Delivery Time : 20-25 Days
    • Product Details
    • Company Profile

    Auto Transmission Housing Aluminum Die Casting with JIS Standard

    Auto Transmission Housing Aluminum Die Casting with JIS Standard

    WHAT IS ALUMINUM DIE CASTING?

    Aluminum die casting alloys are lightweight and possess high dimensional stability for complex part geometries and thin walls.

    Aluminum withstands good corrosion resistance and mechanical properties as well as high thermal and electrical conductivity, making it a good alloy for die casting.

    Low-density aluminum metals are essential to the die casting industry.

    The Aluminum Die Casting process retains a durable strength at very high temperatures, requiring the use of cold chamber machines.

    The molten metal is still contained in an open holding pot which is placed into a furnace, where it is melted to the necessary temperature.

    The open holding pot is kept separate from the die casting machine and the molten metal is ladled from the pot for each casting because these high temperatures would damage the normal pumping system.

    The pressure requirements for cold chamber castings are typically higher than those of hot chamber die castings.
    1. A manufacturing process that produces accurately, defined, smooth and textured-surfaced metal parts
    2. A manufacturing process that produces accurately, defined, smooth and textured-surfaced metal parts
    3. Corrosion resistant
    4. Highly conductive
    5. Have a good stiffness and strength-to-weight ratio
    6. Based on rapid production
    7. Allows a high volume of die casting parts to be produced very quickly
    8. Is more cost-effective than alternative casting processes



    PRODUCTS PROCESS and aluminum die casting specifications:
    Product number0501
    Die Casting MachineCold Chamber ie Casting Machine/Hot Chamber Die Casting Machine
    Die casting typePrecision Die Casting
    ApplicationHardware/Electronic Accessories/Machinery Parts/Agricultural Machinery Parts/Instrument Accessories/Auto Parts
    MachiningCNC Machining/Machining Center
    MaterialAluminum/Aluminum Alloy
    Surface treatmentPolishing/Spray Coating / Deburring/Electroplating/Oxygenation/Baking Paint/Grind/Oil Blooming
    Compressor structureHorizontal
    CertificationISO 9001:2015
    Transport PackagingAccording to customer requirements
    Die cast FinishZinc, brass, chrome, nickel plating, polishing, pain
    Ting, powder coating, e-coating, anodizing, pad printing, silk screening
    Processing1.Design and makingMould 2 ,500T aluminium die casting ,3.CNC machining 4.Inspect 5.Surface treatment:Deburring,Polish,sand blasting 6.Inspection and packing
    Industries ServedElectric-car ,LED Street Lights,Lamp Covers & Shades,Machinery Engine Parts,LED display,Communication ,Furniture
    MaterialJIS STANDARDS:ADC1, ADC3, ADC10, ADC12 and etc.
    AA STANDARDS:A413,A360,A380,A383 and etc.
    Others aluminium die casting parts materials
    FacilitiesTooling Machine:1580 ,1060,850 CNC machine ,grinder,Miller,Electrical Discharge Machining
    10 set die casting machinery :2000T LK Group die casting machinery ,1250T cold chamber die casting machine. .Other Cold Chamber Die Casting Machine.:800T ,650T 400T 280T 260T 160T all in aluminum die casting company
    Vacuum die casting and center furnace
    Hot chamber die casting machine :160T, 88T .
    50 sets CNC machine:1380 CNC machining ,4-axis 1165 CNC machining center,1060 CNC machining center,850 CNC machining center,T6 ,T7CNC machining center,8 CNC lathe & automatic lathe
    Other Machine :1 Shot Blasting Machine,Many Polish machine,drilling machine,Tapping machine,miller, 1 powder coating line.Etc.
    After-sales serviceWe expect that our customers will become our long-term partners, based on the premise that we not only provide the technical support, but also because we provide excellent high quality after-sales service as well.We guarantee our quality is same as confirmed sample.If the quality difference with confirmed sample, we will solve the problem to our customer or compensate for it.
    StandardISO9001 ,TS16949 ,SGS, CTI, RoHS for aluminum die casting parts


    FACTORY Equipments:

    Equipments ListCapacitySets
    Cold Chamber Die Casting Machine100T4
    Cold Chamber Die Casting Machine250T5
    Cold Chamber Die Casting Machine350T3
    Cold Chamber Die Casting Machine400T4
    Cold Chamber Die Casting Machine800T3
    Hot Chamber Die Casting Machine100T4
    CNC Machine/50
    Powder Coating LIne/10


    •FAQ:

    Q: ZHUSHUN's Manufacture Capacity for Die casting ?

    A: 3000 Tons of die-casting product / Year.

    Q: ZHUSHUN's Payment terms ?

    A: a, Level A customers : 100% T/T 60 days after B/L date. (Well credited cooperated min 2 years. )

    b, Level B customers : Mould cost 100% T/T in advance, parts payment 100% T/T Against B/L and DOCs copy in 15 days after B/L time.

    c, Level C customers : Mould cost 100% T/T in advance, parts payment 30% T/T in advance deposite, 70% T/T min 10 days before shippment or L/C by sight.

    d, Negotiable

    Q: ZHUSHUN's Min order ?

    A: 50pcs for ZHUSHUN's catalog products

    1 set for mould

    1 tons for customization die-casting parts each style.

    Q: ZHUSHUN's intercoms ?

    A: EXW,FOB SHENZHEN, CFR YOUR PORT, CIF YOUR PORT,others

    Q: ZHUSHUN's lead time of die-casting and mould ?

    A: Mould tooling time, 25-40 days.

    Die-casting parts production time, 25-30 days.

    Q: ZHUSHUN's mould life time?

    A: a, If you buying mould only, 100000 times moulding or 300000 times moulding according customers' requirements.

    b, If produce die casting parts at our factory, ZHUSHUN will charges for the continue needs mould when mould out of life time.
