    GYFXTY G652D 6mm Single Mode Fiber Optic Cable 2 4 6 8 12 Core

    Ask Lasest Price
    Brand Name : HOOHA
    Model Number : GYFXTY
    Certification : CE, RoHS
    Price : 10 USD/M
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 200 Million Meters Per Year
    Delivery Time : 5-10 working days
    • Product Details
    • Company Profile

    GYFXTY G652D 6mm Single Mode Fiber Optic Cable 2 4 6 8 12 Core

    GYFXTY Fiber Optic Cable 2 4 6 8 12 Core Single Mode G652D Outdoor 6mm Fiber Optical Cable Manufacturers


    1.Description


    1.GYFXTY fiber optic cable is a non-metallic all dielectric cable used for power transmission system, excessive thunder areas and high electromagnetic interface.

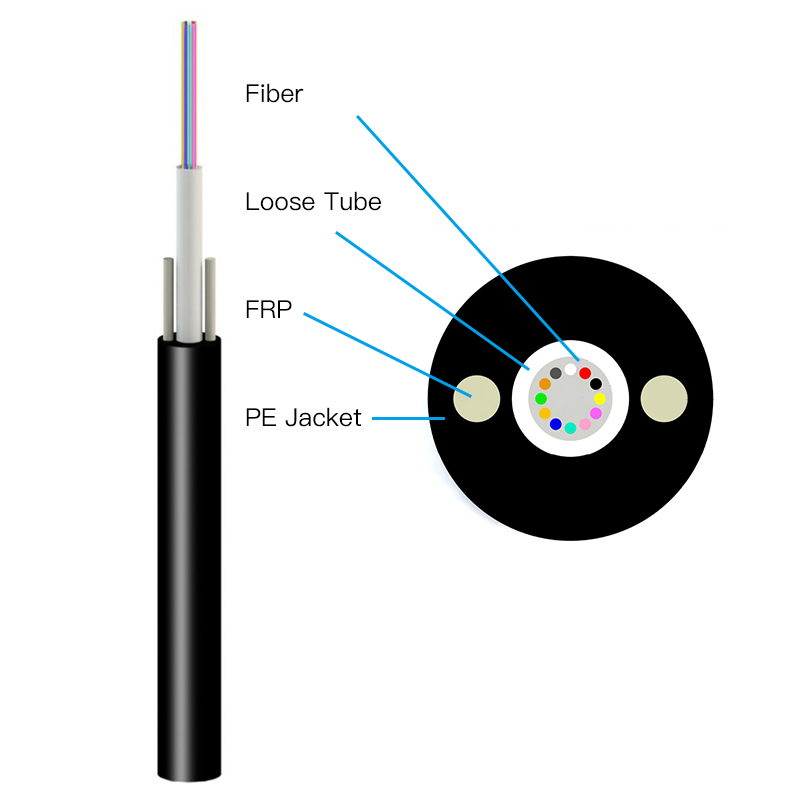

    2.The cable tubes, which are filled with filling compound, there is a central loose tube, and with parallel FRP strength member.

    3.the cable is completed with a PE sheath.GYXFTY cables are available from 2 core to 12 core. It is used in high-voltage area for long distance aerial or duct application


    Model Number: GYFXTY

    Number of Conductors:≥10

    Product Type: GYFXTY

    Fiber Mode: Single Mode

    Fiber Count: 1 to 12 Core

    Fiber Type:G652D

    Cable Color:Black

    Cable Diameter: 6.0mm 7.0mm/ 8.0mm

    Cable Length: 2km 3km 4km

    Jacket Material: LDPE

    Strengthen Member: FRP

    Life Time:15 Years


    2. Product Parameters


    Fiber Count1-12 Fibers
    ConstructionCentral Loose Tube
    Fiber TypeSinglemode G.652D / G.657A1
    Outer Jacket MaterialPE(Black)
    Weight60kg/km
    ApplicationAerial and Duct
    Jacket Diameter5.5 mm 6.0 mm 6.5 mm 7.0 mm
    Cable Length3Km/Drum
    Test Wavelength1310/1550nm
    Operation Temperature-20℃ to +60℃

    3.Packing details


    1, Plywood Drum Packing Size: 800*800*680/Drum
    2, 180~210kgs/Drum


    4.Lead Time


    LCL Delivery<10000m<20000m<50000m>100000m
    Days25 Days22 Days18 DaysNegotiable


    5.HOOHA Introduction


    HOOHA team has been decade focusing on the wire and cable manufacturing field to support customer in successful.we focus on the supply chain for you:


    a.ensure product quality at manufacturing.

    b.supply technical at installation,training ,operating,programming

    c.support cable manufacturing technical d.materials at cable field service


    6.Choose Us


    Pre-sales


    1.Experienced engineer team provides customized solutions and drawing

    2.Professional engineer team provides overseas face-to-face service to offer advice and solution

    3.Advanced trading system guarantees high-efficient communication

    4.High-performance team including experienced salesmen,order supervisors, shipping managers, finance managers, technical engineers would give you more detailed and accurate consultation service


    Mid-sale


    1.Professional follow-up system ensures high-quality service including live production video shooting,etc

    2.Quality control system with professional engineers ensures project goes smoothly

    3.Quality checking service with a test report before delivery ensures products quality


    After-sale


    1.Overseas on-site installation guidance and technical support including previous testing, operation instruction and talent training

    2. Free lifetime online consultation service

    3. Long-time maintenance, reconstruction and upgrade services of the equipment

    4. Additional service support, such as raw material or accessories supply and suggestions, etc.
