    144 288 Core Air Blown Fiber Optic Cable 2000M With FRP

    Ask Lasest Price
    Brand Name : HOOHA
    Model Number : 144 or 288 core fiber optic cable air blown cable
    Certification : CE, RoHS
    Price : 10 USD/M
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 200 Million Meters Per Year
    Delivery Time : 5-10 working days
    • Product Details
    • Company Profile

    144 288 Core Air Blown Fiber Optic Cable 2000M With FRP

    144 or 288 core fiber optic cable air blown cable ABC cable with FRP


    1.Description


    Place of Origin:Guangdong, China

    Model Number:air blown cable

    Number of Conductors:≥ 10

    Type:air blown cable

    Jacket: Black Polyethylene (PE)

    Cores: 144 or 288

    Certification: CE/ROHS/ISO9001/ANATEL

    Strength Member: Fiber Reinforce Plastic

    Application: Duct, aerial installation

    Central strength member: FRP

    Package: plywood drums with

    OEM order: yes


    2.Structure:

    Air blown cable 144 core consists of :

    1.Optical Fiber

    2.Filling Gel

    3.Loose tube

    4.FRP strength member

    5.Lining

    6.Water Blocking Yarn

    7.HDPE Shreath

    8.Ripcord


    3.Standards and certificate:

    Fiber optical cable complies with Standard YD/T 769-2003,IEC60794-1

    Certificate:CE ROHS


    4.Characteristics
    1.Good mechanical and temperature performance
    2.High strength loose tube that is hydrolysis resistant
    3.Special tube filling compound ensure a critical protection of fiber
    4.Crush resistance and flexibility



    5. Product Parameters


    Cable TypeLayer Cable
    Fiber Count243648607296144(A)144(B)
    Number of loose tube234568126
    Number of filled string43210000
    Number of fiber/tube1224
    Water blocking methodFRP or PE LiningWater Blocking yarn
    Cable CoreWater Blocking Kevlar
    Thickness of HDPE sheathNominal:0.45mm, Average:0.40mm, Minimum:0.35mm
    Overall Diameter5.6±0.1mm6.4±0.1mm8.2±0.1mm8.0±0.1mm
    Weight27 kg/km40 kg/km65 kg/km55 kg/km
    Max.Tensile Strength500N1000N1200N1000N
    Max.Crushing Resistance8000N/100mm
    Min. Bending radius-Static12 outer Φ
    Min. Bending radius-Dynamic20 outer Φ
    Cable Fiber Attenuation(G.652D)0.35dB/km max @ 1310nm 0.22dB/km max@1550nm
    Temperature rangeStorage -40~+70℃; Installation -10~+40℃; Operation -40~+70℃


    6.Packing details


    2000 meters/roll



    7.Lead Time


    LCL Delivery<10000m<20000m<50000m>100000m
    Days25 Days22 Days18 DaysNegotiable

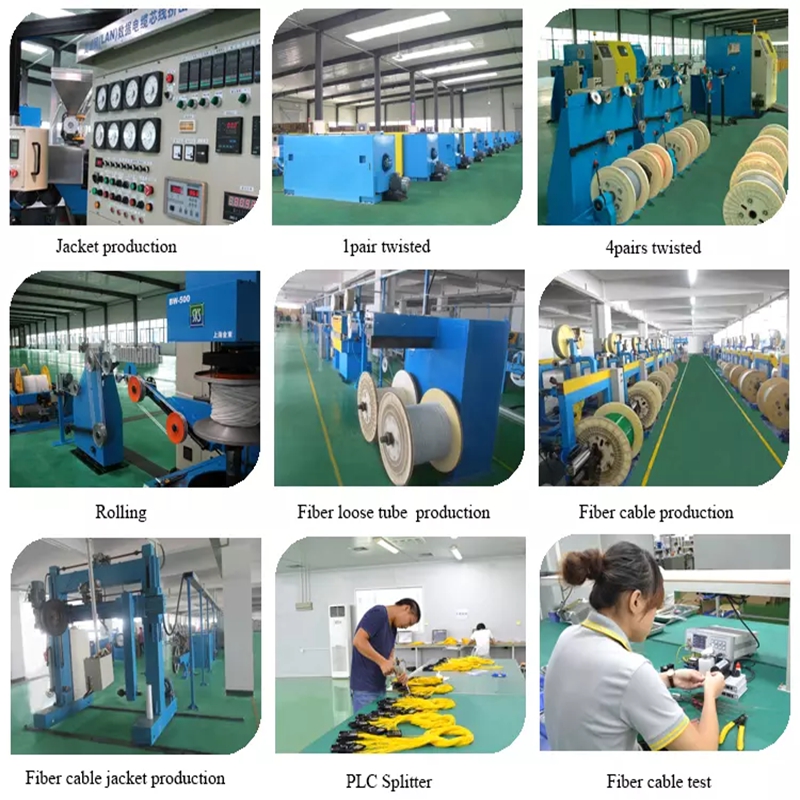

    8.HOOHA Introduction


    HOOHA team has been decade focusing on the wire and cable manufacturing field to support customer in successful.we focus on the supply chain for you:


    a.ensure product quality at manufacturing.

    b.supply technical at installation,training ,operating,programming

    c.support cable manufacturing technical d.materials at cable field service
