0.6 1KV Overhead Transmission Aerial Bundled Cable

Ask Lasest Price
Brand Name :	HH
Model Number :	ABC cable
Certification :	CCC,CE
Price :	10 USD/meter
Payment Terms :	L/C, T/T
Supply Ability :	15000 Kilometer/Kilometers per Month
Delivery Time :	7-15 days

Add to Cart

Product Details
Company Profile

0.6 1KV Overhead Transmission Aerial Bundled Cable

Overhead Electric Transmission Aerial Bundled Cable abc cable

1.Application

a.Overhead abc cables are mainly used for 600V overhead auxiliary power distribution lines.

b.It is not an electrically insulated conductor and is usually regarded as a bare conductor during installation.

c.The conductor is 1350-H19 aluminum wire, 6201-T81 aluminum alloy or ACSR conductor, concentric stranded wire and polyethylene

d.high density polyethylene (HDPE) or cross-linked Covered with polyethylene (XLPE) to protect against wind and rain.

2.Product details

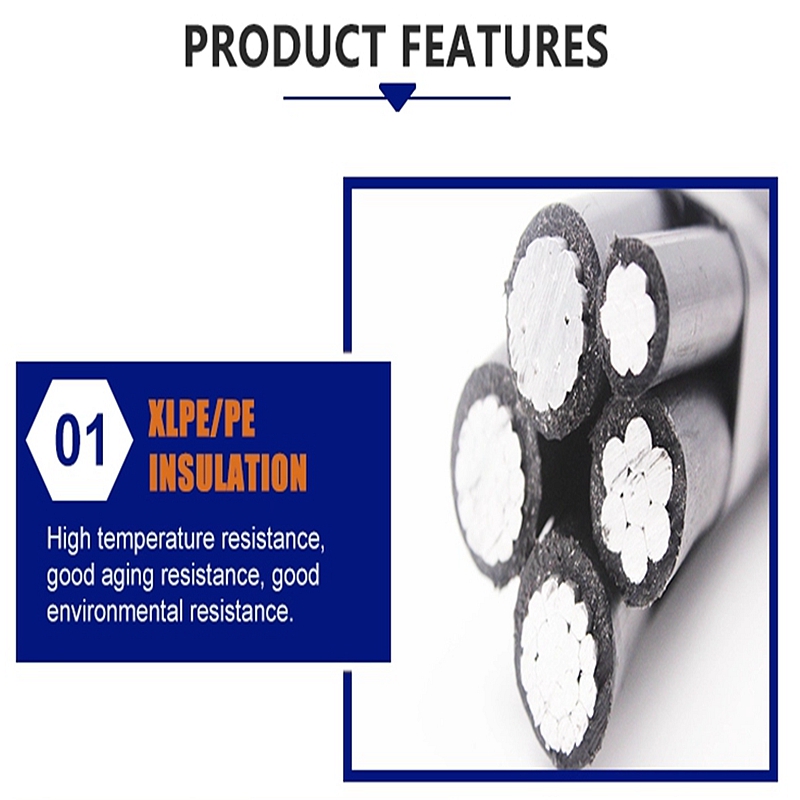

Insulation Material:PE /XLPE /PVC

Type:LOW VOLTAGE

Application:Power Transportation, Overhead Transmission

Conductor Material:Al, Al Alloy, ACSR, Alu & Alloy&ACSR

Jacket:N/A,XLPE/PE/PVC

key words:abc cable

Standard:ASTM, AS, BS, DIN, IEC, NFC,

Package:wooden and steel-wooden drum

Voltage:0.6/1kv

Number of Cores:6

3.Product Parameters

Rated voltage	0.6/1kv			Specification			ABC
Structure
AWG or kcmi	Carrying wire core(acsr)					Phase conductor			insulation
	Steel		Aluminium			Aluminium			xlpe
	No.	Dia.	No.	Dia	Dia	No.	Dia	Dia
36AWG+16AWG	1	1.68	6	1.68	5.04	1	4.11	4.11	1.14
36AWG+16AWG	1	1.68	6	1.68	5.04	7	1.55	1.55	1.14
34AWG+14AWG	1	2.12	6	2.12	6.36	1	5.19	5.19	1.14
34AWG+14AWG	1	2.12	6	2.12	6.36	7	1.96	5.88	1.14
32AWG+12AWG	1	2.67	6	2.67	8.02	7	2.47	7.42	1.14
31/0AWG+11/0AWG	1	3.37	6	3.37	10.11	19	1.89	9.47	1.52
32/0AWG+12/0AWG	1	3.78	6	3.78	11.35	19	2.13	10.63	1.52
33/0AWG+13/0AWG	1	4.25	6	4.25	12.74	19	2.39	11.94	1.52
34/0AWG+14/0AWG	1	4.77	6	4.77	14.31	19	2.68	13.4	1.52
3336.4+1336.4	1	3.47	18	3.47	17.36	19	3.38	16.9	2.03
3336.4+14/0AWG	1	4.77	6	4.77	14.31	19	3.38	16.9	2.03

4.Packaging Details

1. In roll

2. In wooden drum:700*300*600*700

1100*400*700*800

1100*400*1000*1100

1200*500*1000*1100

3 In steel wooden drum: 1800*900*950*1100

2000*1000*950*1100

2200*1100*950*1100

5.Lead Time:

Quantity(Meters)	1-50000	>50000
Est. Time(days)	5	To be negotiated

6.What is important to us ?

1.Quality, our engineers work with service colleagues.We are committed to enabling engineers to learn more about customer feedback from the service team.
2.Customers' comfortable purchasing experience.We pay attention to the actual needs of customers, and hope to bring customers high-efficiency products and intimate service, our services cover pre-sales and after-sales, committed to let customers save time and cost, and reduce worries
3.Customers' success.We not only focus on the sales of products, but also pay attention to the development of our customers. We pursue growing together with customers by providing long-term support and suggestions to help them achieve success.
4.Supply more environmentally friendly products.
5.Give back to the community and help more people.
