Fully Automatic Labor Saving Cable Coiling And Wrapping Machine

Ask Lasest Price
Brand Name :	HOOHA
Model Number :	HH-P-1860
Certification :	CE/ISO
Price :	45000-60000 USD
Supply Ability :	15 units/month
Delivery Time :	15 Working Days

Add to Cart

Product Details
Company Profile

Fully Automatic Labor Saving Cable Coiling And Wrapping Machine

Fully Automatic Labor Saving Cable Coiling and Wrapping Machine

This equipment is suitable for cable automatic coiling and wrapping. MMI+PLC control system to produce 100-500 meters of single cable coils. Work tandem as a take up unit on a PVC wire extrusion line with continuous coiling or independently by using a driven cantilever pay off stand and wire accumulator.

Coiling Speed	700 RPM
Coiling Size	Outside diameter is 220-600mm, height is 60-180mm, Inner diameter is 180-250mm
Applicable Wire Range	5-15mm
Power Supply	AC 380 V, three-phase, 50 HZ or customized
Operation Direction	Left or right side(Can be customized)
Packaged Coil Weight	MAX 50 kg

1	Automatic packaging, wrapping and labeling
2	Packing label capacity 7 times more than manual
3	200m per coil and coiling speed 4 times more than manual
4	Can be directly connected to the extrusion machine
5	Servo motor flat cable system, perfect packing
6	Automatic warning system, easy control of the operation
7	99 types of the coiling storage and can change as you like
8	Touch screen man-machine interface operation, all circuit control adopt microcomputer programmable controller
9	Cable row system adopt servo motor wiring system, the speed as the same as the main machine
10	The meter count is close to the accuracy of 0.01,forecast slow down the speed, automatic coiling renew. One coil can be set and close to 0.2% accuracy
11	The machine PLC contacts with power frequency spark machine for the spark of BV line detection, can automatic spark breakdown point or artificial mark continue knitting function or automatic increase 5 meters length into a circle
12	The machine PLC contacts with caliper gauge. Diameter is not up to standard can be automatically eliminate waste line or artificial marking after continue to function

Use PVC/PE film, high-speed coiling and wrapping
The film roll loading method is pneumatic clamping
PVC/PE/PP film size:Thickness 0.05-0.07mm * width 60-70mm
Adopt touch screen interface (man-machine interface) operation is simple and convenient
Wire arm type, driven by AC motor, rotating reel smoothly
Use electric method to adjust the size of the holding arm, fast and convenient
Equipped with automatic label feeding mechanism, which can automatically pick up a label and send it to the coil
With PLC system, high stability and convenient operation, and 99 sets of different coil packaging specifications can be memorized. When the product specifications are changed, only the memory data needs to be read, and the production can be done immediately without adjustment and testing.
There are convenient and stable instruments and switches on the operation panel: touch screen, speed adjustment button, emergency switch, etc.

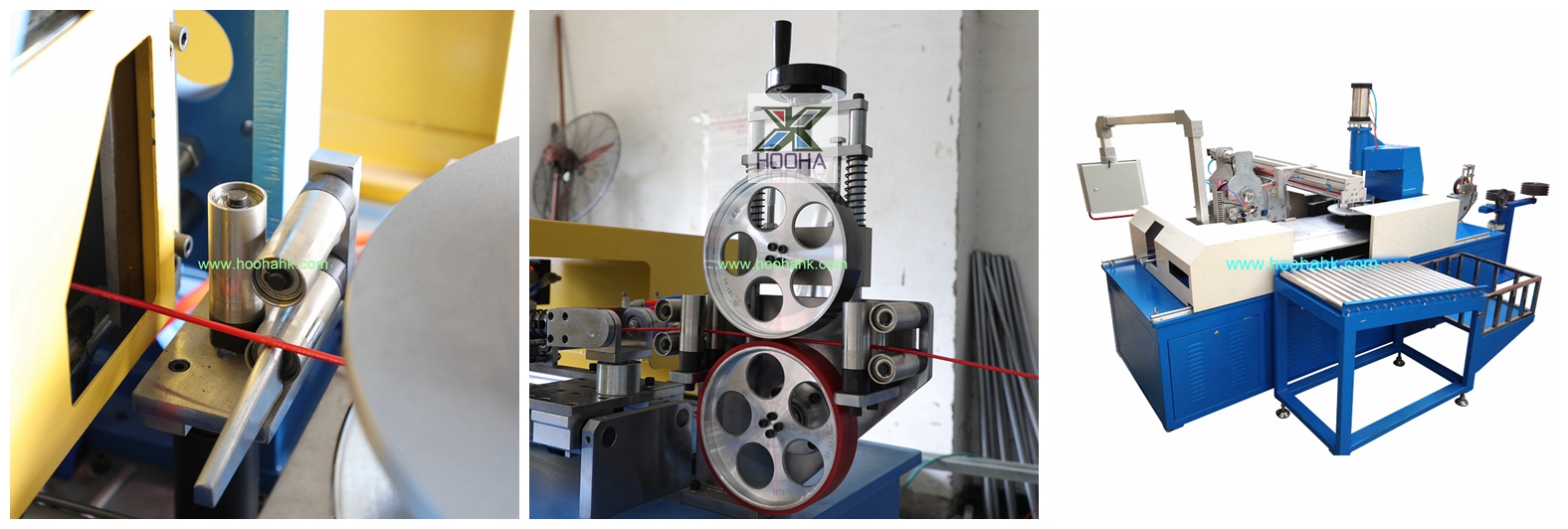

No.	Items	Quantity	Reference Picture
1	630-800 Magnetic Powder Type Payoff Stand	1 Set
2	Wire Straightening Device	1 Set
3	PLC Automatic 1860 Coiling And Wrapping Main Machine	1 Set

Streatchable PE film wrapped, well packed by wooden frame, loaded into container for shipping. Special packaging way as per negotiation.

1.Quality, our engineers work with service colleagues to learn more about customer feedback and improve our machines accordingly.
2.Customers' comfortable purchasing experience.We pay attention to the actual needs of customers, and hope to bring customers high-efficiency products and intimate service, our services cover pre-sales and after-sales, committed to let customers save time and cost, and reduce worries
3.Customers' success.We not only focus on the sales of products, but also pay attention to the development of our customers. We pursue growing together with customers by providing long-term support and suggestions to help them achieve success.
4.Supply more environmentally friendly products.
5.Give back to the community and help more people.

Q1:What is your main brands for the electrical and mechanical parts?

A:Oversea famous brand such as German siemens motor, Japanese nsk bearing and yaskawa inverter etc.

Q2:What is your difference with other suppliers?
A:What we could offer to other customer is not only the machine itself, also we could offer: factory design, production process design , QC control, talent training, assist machine and raw material offering .

Q3:What's the payment terms?
A:T/T,30% deposit and 70% balance before delivery, can be negotiable also.

Q4:How long the guarantee ?
A: One year and charge for repair for the whole life.

Q5: Do you have a video to show the machine running ?
A. Yes , we have,our youtube channel : tiezhong chi.
