    Complete Set Silicone Cable Making Machine With Installation Commissioning Service

    Ask Lasest Price
    Brand Name : HOOHA
    Model Number : HH-Silicon Cable
    Certification : CE/ISO
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 1 set / 60 days
    Delivery Time : 60 Working Days
    • Product Details
    • Company Profile

    Complete Set Silicone Cable Making Machine With Installation Commissioning Service

    Complete Set Silicone Cable Making Machine with Installation and Commissioning Service

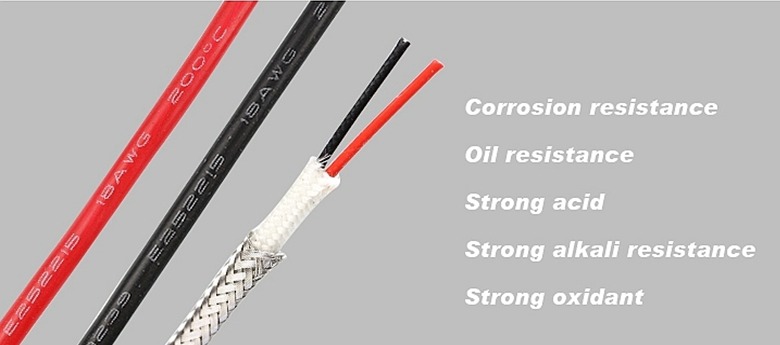

    Introduction and Usage of Silicone Cable

    Silicone high temperature wire has excellent high temperature resistance and low temperature resistance, excellent high pressure resistance, aging resistance, high temperature resistance, acid and alkali resistance, and long service life. Silicone rubber is used for insulation, and the colors are: white, red, black, blue, green, yellow, translucent, etc. Long service life, easy to be soft and easy to install.

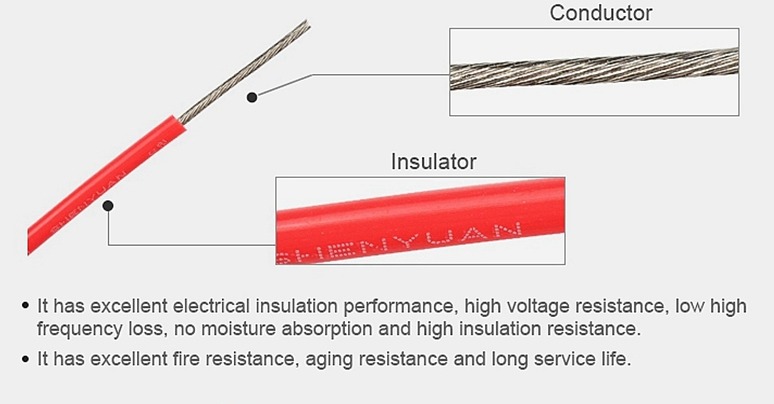

    Features:

    Insulation: Silicone rubber

    Single or stranded bare copper or tinned copper wire (tinned copper wire is 0.08mm-0.4mm)

    Flammability UL: VW-1, Electrical Appliances Safety Law: -F-


    Usage:

    It is widely used in high temperature wire environment such as lighting lamps, household appliances, electric heating appliances, instrumentation, motor lead wires and electronics, lamps and dyeing tools.





    Production Process and Related Machines

    1. Conductor Stranding
    HH-B-500 High Speed Bunching Machine


    2. Conductor Silicone Insulation
    HH-E-65 Silicone Cable Extrusion Machine


    Components and Parameters

    1. HH-B-500 High Speed Bunching Machine

    Application:
    It is suitable for stranding of the copper wires with more than seven strands, also suitable for electronic wires, power wires, bare copper wires, network wires etc.

    Components:

    No.ItemsQuantity
    1500 Bunching machine1 set
    2Pay off stand multi-core copper wire1 set


    Parameters:

    No.ItemsValue
    1Single wire diameterØ0.08mm-Ø0.30mm
    2Stranding area0.3mm2-2.5 mm2
    3Stranded wire length calculationHow many meters per minute = twisting distance *2/1000* twisting bow speed per minute
    4Twisting pitch5.66 - 39.37mm
    5Rotation speed of arched bandMax: 2200RPM.
    6Spindle lubricationUse manual grease gun to inject oil




    2. HH-E-65 Silicone Cable Extrusion Machine

    Application:
    This silicone cable extrusion line is applicable for insulation and sheathing extruding for single, 2 cores, 3 cores silicone cables such as power cables, medical cables, control cables etc.

    Components:

    No.ItemsFeatures
    1400-630 active pay-off stand1 set
    25-wheel Straightening device1 set
    3Copper wire preheating machine1 set
    465 Silicone extrusion machine with vacuum pump1 set
    5PLC electric control box1 set
    6Diameter tester1 set
    720m Electric heating curing chamber1 set
    8High speed printing machine1 set
    99 meters accumulator stand1 set
    10Dual wheels Capstan1 set
    11Meter counter1 set
    12High frequency spark tester1 set
    13Powder machine1 set
    14Double shaft take-up machine1 set
    15Display board1 set
    16Accessories


    Parameters:

    No.ItemsFeatures
    1Inlet Wire Diameter0.3-5.0mm
    2Finished Wire Diameter1.8-8.0mm
    4Extrusion SpeedMax 80 m/min
    5Extrusion Capacity60 kg/h
    6Installed Capacity65 kva
    7Voltage380KV, can be customized
    8Weight3500 kg
    9Measurement (L*W*H)18*2*2 m
    10Workers recommendation3 workers
